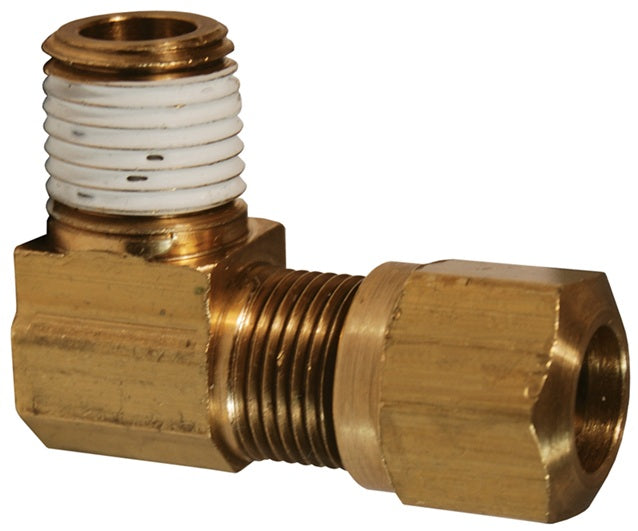

69NAB64VS by Dixon Valve | Air Brake Fitting | Male 90° Elbow | 1/4" Male NPT x 3/8" Tube Size | Brass

69NAB64VS by Dixon Valve | Air Brake Fitting | Male 90° Elbow | 1/4" Male NPT x 3/8" Tube Size | Brass

Save $0.49 Save $0.49
$5.88
$5.88 - $5.88
$5.88
$5.39
$5.39 - $5.39
$5.39

Dixon Valve & Coupling
Air Brake Fitting | Male 90° Elbow | Male NPT x Tube End

Ref. SAE 100202 BA

Designed for use in air brake systems or cab controls.

Compatible tubing: SAE J844 type A and B.
Specifications for Variant SKU: 69NAB64VS Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Tube Compression, 1/4in Male NPT
Material(s): Brass
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
  • Thread sealant may be white or burnt orange.
Construction:
  • Machined from CA260, CA345 or CA377 brass.
Specifications:
  • Temperature range: -40°F to 200°F (-40°C to 93°C).
Approvals:
  • Ref. SAE 100202 BA
  • Meets DOT FMVSS 571.106 and SAE J246.
Assembly Instructions:
  • 1. Cut tubing squarely - maximum of 15° angle allowable.
  • 2. Check that port or mating part is clean and free of debris.
  • 3. Insert tubing into fittings until it bottoms on seat.
  • 4. Tighten nut with wrench until one thread remains visible on the fittings body (this will allow for a number of remakes); or, the nut should be screwed down finger tight, then wrench-tightened as indicated in the chart below.
Tube Size Turns required to seal from hand tight
3/16" 2-1/2
1/4" 3
3/8" & 1/2" 4
5/8" & 3/4" 3-1/2
Part Number Tube Size Pipe Thread Straight Thread
69NAB32VS 3/16" 1/8" 5/16"-24
69NAB34VS 3/16" 1/4" 5/16"-24
69NAB42VS 1/4" 1/8" 7/16"-24
69NAB44VS 1/4" 1/4" 7/16"-24
69NAB46VS 1/4" 3/8" 7/16"-24
69NAB62VS 3/8" 1/8" 17/32"-24
69NAB64VS 3/8" 1/4" 17/32"-24
69NAB66VS 3/8" 3/8" 17/32"-24
69NAB68VS 3/8" 1/2" 17/32"-24
69NAB84VS 1/2" 1/4" 11/16"-20
69NAB86VS 1/2" 3/8" 11/16"-20
69NAB88VS 1/2" 1/2" 11/16"-20
69NAB106VS 5/8" 3/8" 13/16"-18
69NAB108VS 5/8" 1/2" 13/16"-18
69NAB128VS 3/4" 1/2" 1"-18
69NAB1212VS 3/4" 3/4" 1"-18
