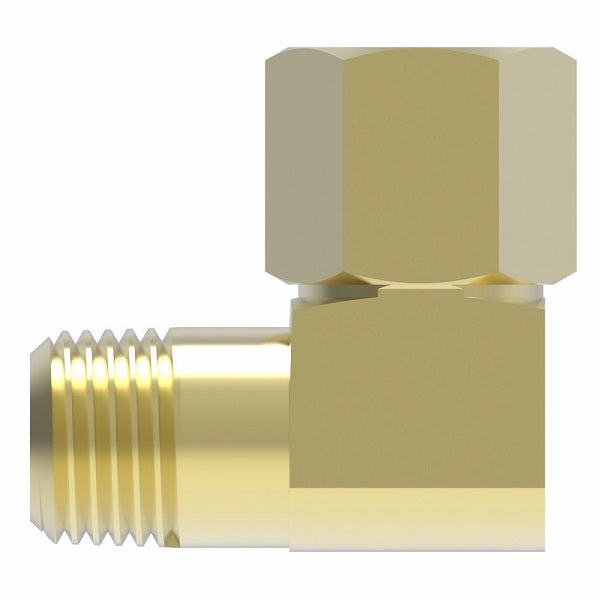

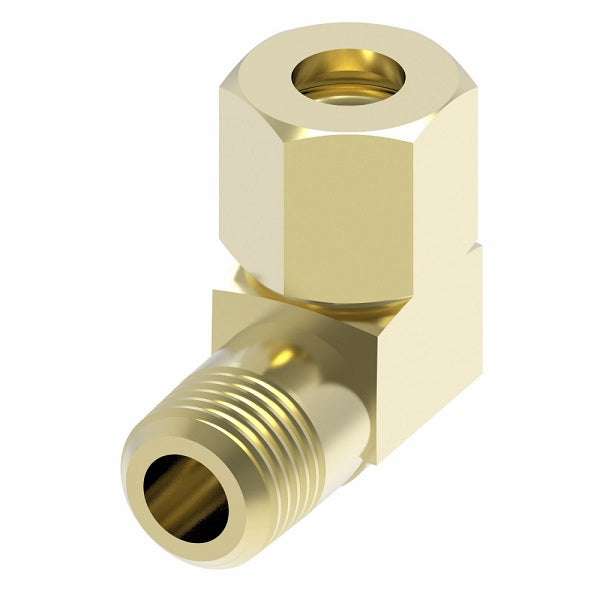

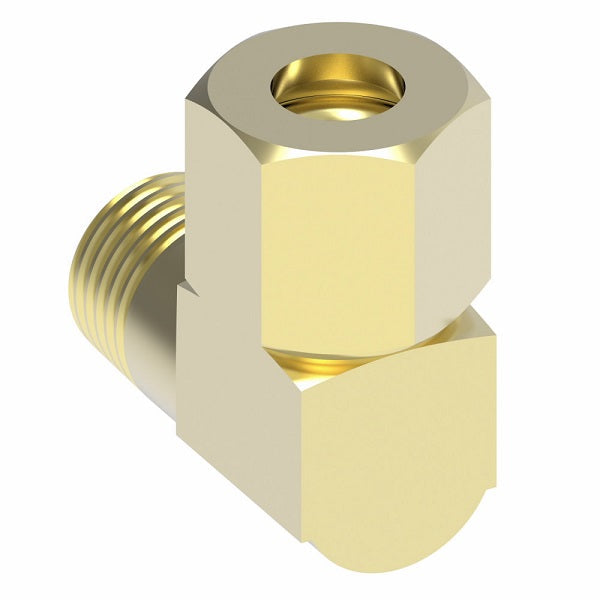

69X2 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/8" Tube OD x 1/8" Male NPTF | Brass
69X2 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/8" Tube OD x 1/8" Male NPTF | Brass
69X2 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/8" Tube OD x 1/8" Male NPTF | Brass
69X2 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/8" Tube OD x 1/8" Male NPTF | Brass

69X2 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/8" Tube OD x 1/8" Male NPTF | Brass

$5.22 - $5.22
$5.22
$5.22 - $5.22
$5.22

Aeroquip® by Danfoss
Compression Fitting - Male Connector
Compression End x Male NPTF
90° Elbow
Specifications for Variant SKU: 69X2 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Tube Compression, 1/8in Male NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060202BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Brass
With Sealant
Part Number 		Brass
Body Only
Part Number 		Tube O.D. Male Pipe Thread D D1 M N
69X2X1 - B69X2X1 1/8" 1/16" 0.104" 0.125" 0.54" 0.66"
69X2 69X2Z - 1/8" 1/8" 0.94" 0.219" 0.60" 0.67"
69X3 - B69X3 3/16" 1/8" 0.125" 0.219" 0.62" 0.69"
69X4 69X4Z B69X4 1/4" 1/8" 0.188" 0.219" 0.62" 0.75"
69X4X4 - - 1/4" 1/4" 0.188" 0.188" 0.63" 0.84"
69X5 - B69X5 5/16" 1/8" 0.250" 0.234" 0.62" 0.75"
69X5X4 - B69X5X4 5/16" 1/4" 0.202" 0.344" 0.69" 0.84"
69X6X2 - B69X6X2 3/8" 1/8" 0.312" 0.234" 0.69" 0.69"
69X6 - B69X6 3/8" 1/4" 0.312" 0.344" 0.75" 0.93"
69X6X6 - B69X6X6 3/8" 3/8" 0.312" 0.437" 0.85" 0.94"
69X6X8 - B69X6X8 3/8" 1/2" 0.312" 0.562" 1.04" 1.14"
69X8X4 - B69X8X4 1/2" 1/4" 0.406" 0.312" 0.84" 0.94"
69X8 - B69X8 1/2" 3/8" 0.406" 0.407" 0.94" 1.12"
69X8X8 - B69X8X8 1/2" 1/2" 0.406" 0.531" 0.94" 1.31"
69X10 - B69X10 5/8" 1/2" 0.500" 0.564" 1.06" 1.31"
