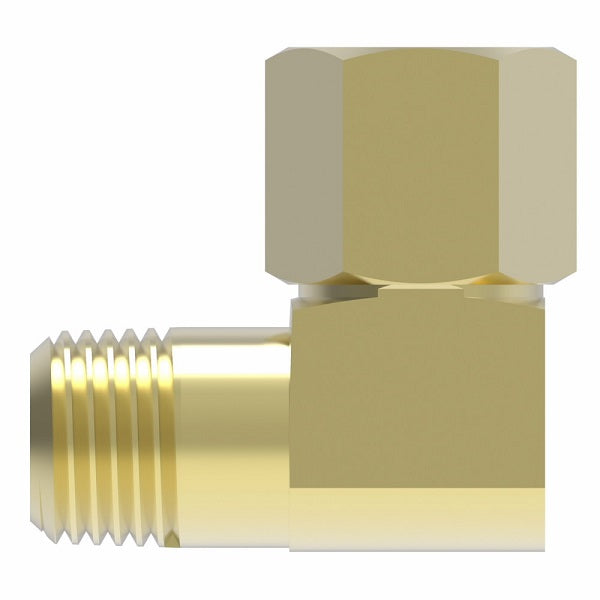

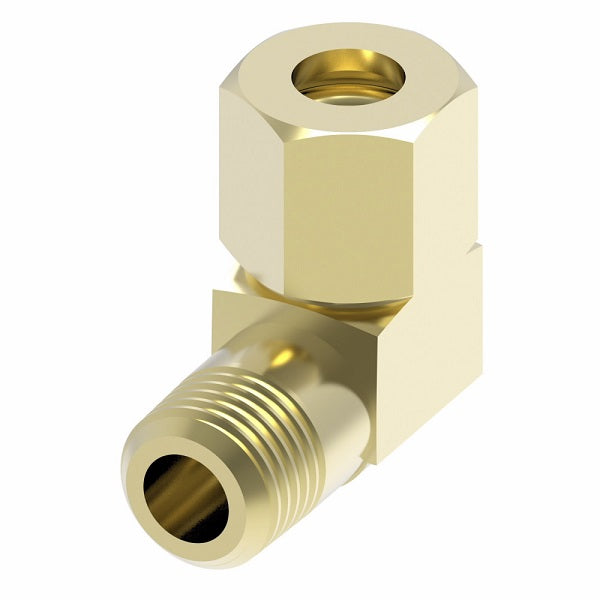

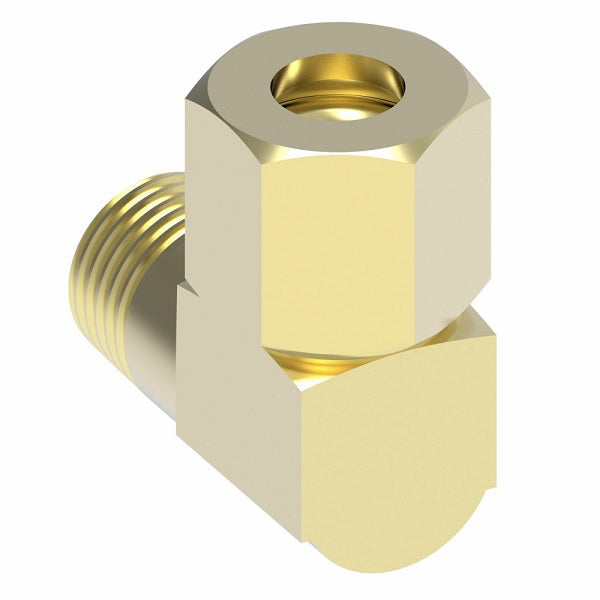

69X8X4 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/2" Tube OD x 1/4" Male NPTF | Brass
69X8X4 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/2" Tube OD x 1/4" Male NPTF | Brass
69X8X4 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/2" Tube OD x 1/4" Male NPTF | Brass
69X8X4 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/2" Tube OD x 1/4" Male NPTF | Brass

69X8X4 by Danfoss | Compression Fitting | Male Connector 90° Elbow | 1/2" Tube OD x 1/4" Male NPTF | Brass

$21.68 - $21.68
$21.68
$21.68 - $21.68
$21.68

Aeroquip® by Danfoss
Compression Fitting - Male Connector
Compression End x Male NPTF
90° Elbow
Specifications for Variant SKU: 69X8X4 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Tube Compression, 1/4in Male NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060202BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Brass
With Sealant
Part Number 		Brass
Body Only
Part Number 		Tube O.D. Male Pipe Thread D D1 M N
69X2X1 - B69X2X1 1/8" 1/16" 0.104" 0.125" 0.54" 0.66"
69X2 69X2Z - 1/8" 1/8" 0.94" 0.219" 0.60" 0.67"
69X3 - B69X3 3/16" 1/8" 0.125" 0.219" 0.62" 0.69"
69X4 69X4Z B69X4 1/4" 1/8" 0.188" 0.219" 0.62" 0.75"
69X4X4 - - 1/4" 1/4" 0.188" 0.188" 0.63" 0.84"
69X5 - B69X5 5/16" 1/8" 0.250" 0.234" 0.62" 0.75"
69X5X4 - B69X5X4 5/16" 1/4" 0.202" 0.344" 0.69" 0.84"
69X6X2 - B69X6X2 3/8" 1/8" 0.312" 0.234" 0.69" 0.69"
69X6 - B69X6 3/8" 1/4" 0.312" 0.344" 0.75" 0.93"
69X6X6 - B69X6X6 3/8" 3/8" 0.312" 0.437" 0.85" 0.94"
69X6X8 - B69X6X8 3/8" 1/2" 0.312" 0.562" 1.04" 1.14"
69X8X4 - B69X8X4 1/2" 1/4" 0.406" 0.312" 0.84" 0.94"
69X8 - B69X8 1/2" 3/8" 0.406" 0.407" 0.94" 1.12"
69X8X8 - B69X8X8 1/2" 1/2" 0.406" 0.531" 0.94" 1.31"
69X10 - B69X10 5/8" 1/2" 0.500" 0.564" 1.06" 1.31"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
