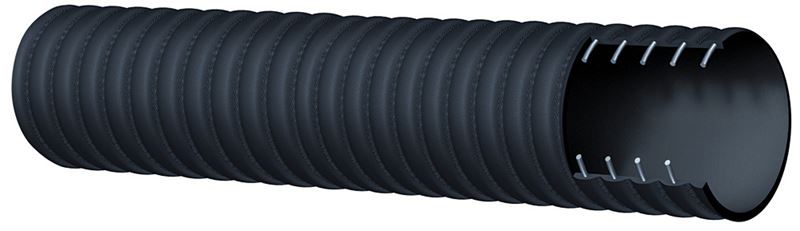

6C5AA600X20 Alfagomma by Kuriyama | 6C5AA Series | Corrugated Tank Truck Hose | 6" ID | 6.54" OD | 150 PSI | Black | 20ft Length

6C5AA600X20 Alfagomma by Kuriyama | 6C5AA Series | Corrugated Tank Truck Hose | 6" ID | 6.54" OD | 150 PSI | Black | 20ft Length

Save $521.52 Save $521.52
$1,223.42
$1,223.42 - $1,223.42
$1,223.42
$701.90
$701.90 - $701.90
$701.90

Kuriyama of America Inc.
Alfagomma | 6C5AA Series | Corrugated Tank Truck Hose

For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.

Package Quantity: 20 Foot

Specifications for Variant SKU: 6C5AA600X20 Kuriyama | 20 |
Brand: Alfagomma
Series: 6C5AA Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.54in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Conductive Tube

SPECIFICATIONS

Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.
Other Ratings: - Tube: Black conductive NBR.
Reinforcement: High tensile textile cords with flexible steel helix wire. Cover: Black corrugated CR - abrasion, ozone, and hydrocarbon resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting couplings or combination nipples attached with bands.
Branding: ALFAGOMMA - ITALY T6C5 10 BAR (150 PSI) PETROLEUM TANK TRUCK (in red letters)
Part Number
100ft		 Part Number
20ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
6C5AA200X100 - 2" 51mm 2.48" 63mm 150 PSI 30 in Hg 4" 0.85 lbs/ft
6C5AA300X100 - 3" 76mm 3.44" 90mm 150 PSI 27 in Hg 6" 1.57 lbs/ft
6C5AA400X100 - 4" 102mm 4.57" 116mm 150 PSI 27 in Hg 8" 2.21 lbs/ft
- 6C5AA600X20 6" 152mm 6.54" 166mm 150 PSI 27 in Hg 12" 3.59 lbs/ft
