6GC25-12x12 Couplamatic Grip Crimp 6GC Series Coupling - JIC 37° - 45° Female Swivel - 3/4" Hose ID - 1-1/16x12 Thread Size

6GC25-12x12 by Couplamatic | Grip Crimp 6GC Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread Size JIC 37° Female Swivel | 45° Elbow | Trivalent Zinc Plating

Save $28.29 Save $28.29
$70.73
$70.73 - $70.73
$70.73
$42.44
$42.44 - $42.44
$42.44

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - JIC 37° - 45° Female Swivel
Specifications for Variant SKU: 6GC25-12x12 Couplamatic
Series: 6GC Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

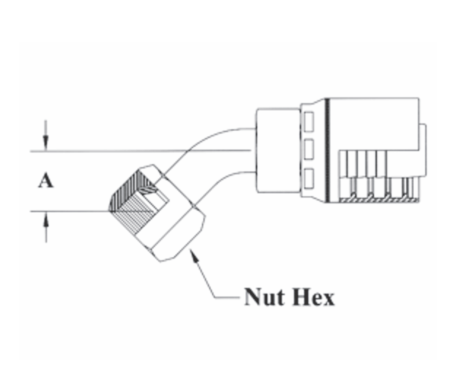

    Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex
    6GC25-12x12 3/4" 3/4" 1-1/16x12 1.50" 1-1/4"
    6GC25-16x16 1" 1" 1-5/16x12 1.75" 1-1/2"
