6GC47-32x32 Couplamatic Grip Crimp 6GC Series Coupling - Code 61 Split Flange - Straight - 2" Hose ID - 2 Flange Size

6GC47-32x32 by Couplamatic | Grip Crimp 6GC Series Coupling | 2" Hose ID x 2 Split Flange Size | Code 61 | Straight | Trivalent Zinc Plating

Save $14.87

$133.79

$133.79 - $133.79

$133.79

$118.92

$118.92 - $118.92

$118.92

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Code 61 Split Flange - Straight

Quantity

Specifications for Variant SKU: 6GC47-32x32 Couplamatic
Series:	6GC Series
Shape (Orientation):	Straight
Ends Configuration:	2in Code 61 Flange, 2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	RC13 Series \| DHEXR13 Series \| RC15 Series \| 4SH Series

Description:
The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

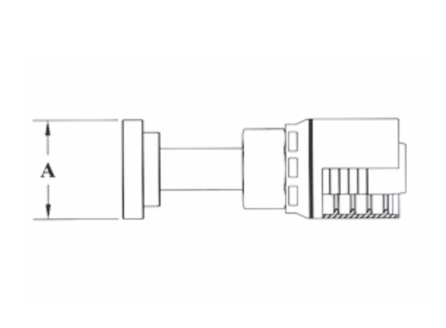

Part Number	Hose ID	Flange Size	A-DiaInches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-DiaInches	Parker 78
6GC47-12x12	3/4"	3/4"	1.50"	11578-12-12
6GC47-12x16	3/4"	1"	1.75"	-
6GC47-16x16	1"	1"	1.75"	11578-16-16
6GC47-16x20	1"	1-1/4"	2.00"	-
6GC47-20x20	1-1/4"	1-1/4"	2.00"	14A78-20-20
6GC47-24x24	1-1/2"	1-1/2"	2.38"	14A78-24-24
6GC47-32x32	2"	2"	2.81"	14AS6-32-32

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
