6GC50-24x24 Couplamatic Grip Crimp 6GC Series Coupling - Code 61 Split Flange - 45° Bend - 1-1/2" Hose ID - 1-1/2" Flange Size

6GC50-24x24 by Couplamatic | Grip Crimp 6GC Series Coupling | 1-1/2" Hose ID x 1-1/2" Split Flange Size | Code 61 | 45° Elbow | Trivalent Zinc Plating

Save $67.09 Save $67.09
$167.72
$167.72 - $167.72
$167.72
$100.63
$100.63 - $100.63
$100.63

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Code 61 Split Flange - 45° Bend
Specifications for Variant SKU: 6GC50-24x24 Couplamatic
Series: 6GC Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Code 61 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

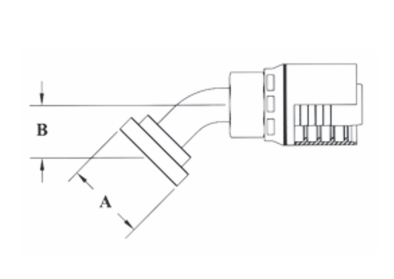

    Part Number Hose ID Flange Size A-DiaInches B-DropInches Cross Reference Part Numbers
    Parker 78
    6GC50-12x12 3/4" 3/4" 1.50" 1.25" 11778-12-12
    6GC50-16x16 1" 1" 1.75" 1.30" 11778-16-16
    6GC50-20x20 1-1/4" 1-1/4" 2.00" 1.50" 14F78-20-20
    6GC50-24x24 1-1/2" 1-1/2" 2.38" 1.75" 14F78-24-24
    6GC50-32x32 2" 2" 2.81" 2.25" 14FS6-32-32

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
