6GC80-12x16 Couplamatic Grip Crimp 6GC Series Coupling - Extra Heavy Duty Flange - Straight - 3/4" Hose ID - 1" Flange Size (for use on Caterpillar® Equipment)

6GC80-12x16 by Couplamatic | Grip Crimp 6GC Series Coupling | Extra Heavy Duty Flange | 3/4" Hose ID x 1" Flange Size | for use on Caterpillar® Equipment | Straight | Trivalent Zinc Plating

Save $5.15

$46.38

$46.38 - $46.38

$46.38

$41.23

$41.23 - $41.23

$41.23

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Extra Heavy Duty Flange - Straight (For use on Caterpillar® Equipment)

Quantity

Specifications for Variant SKU: 6GC80-12x16 Couplamatic
Series:	6GC Series
Shape (Orientation):	Straight
Ends Configuration:	1in Caterpillar Flange, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	RC13 Series \| DHEXR13 Series \| RC15 Series \| 4SH Series

Description:
The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

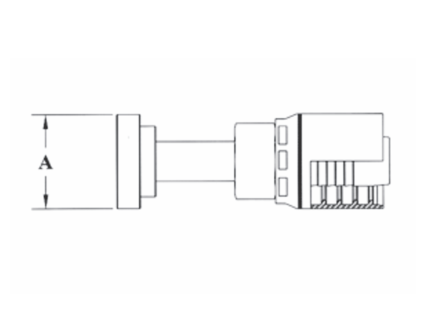

Part Number	Hose ID	Flange Size	A-DiaInches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-DiaInches	Parker 78	Parker 79
6GC80-12x12	3/4"	3/4"	1.62"	1XA78-12-12	1XA79-12-12
6GC80-12x16	3/4"	1"	1.88"	-	-
6GC80-16x16	1"	1"	1.88"	1XA78-16-16	1XA79-16-16
6GC80-16x20	1"	1-1/4"	2.12"	-	-
6GC80-20x20	1-1/4"	1-1/4"	2.12"	1XA78-20-20	1XA79-20-20
6GC80-24x24	1-1/2"	1-1/2"	2.50"	1XA78-24-24	1XA79-24-24
6GC80-32x32	2"	2"	3.12"	1XAS6-32-32	-

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
