6R5-6FS90 Couplamatic Reusable Coupling - R5 Reusables - SAE 45° - 90° Female Swivel - 5/16" Hose ID - 5/8-18 Thread Size

6R5-6FS90 by Couplamatic | R5 Reusable Coupling | 5/16" Hose ID x 5/8-18 Thread Size SAE 45° Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $11.89 Save $11.89
$29.72
$29.72 - $29.72
$29.72
$17.83
$17.83 - $17.83
$17.83

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - SAE 45° - 90° Female Swivel
Specifications for Variant SKU: 6R5-6FS90 Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female SAE 45 Flare, 5/16in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Features:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    Assembly Instructions:
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.

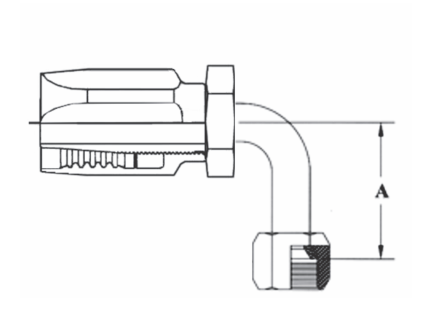

    Part Number Hose ID Hose Dash Size Thread Size Tube OD A-DropInches Hose Type
    6R5-6FS90 5/16" -06 5/8-18 3/8" 0.84" 100R5
