Aeroquip® by Danfoss

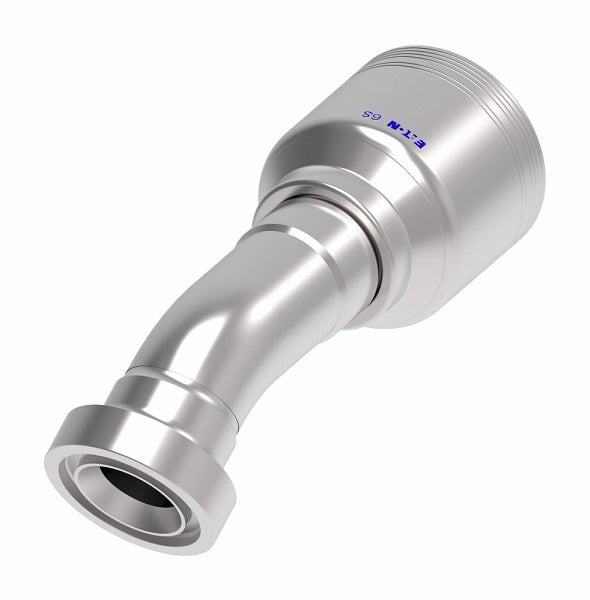

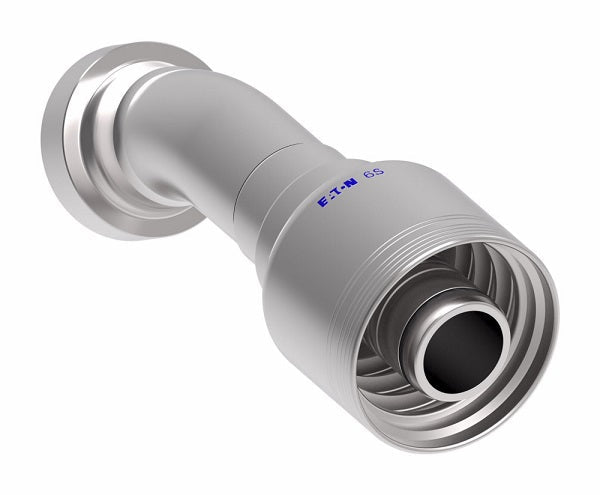

6 Wire 6S CAT Flange Crimp Fitting (CTF) - 30° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6S20CTF20 Danfoss
Shape (Orientation):	30 Degree
Ends Configuration:	1-1/4in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16CTF16	-16	25	-16	1.87"	5.58"	4.02"	0.76"	0.85"
6S20CTF16	-20	25	-16	2.13"	6.37"	4.80"	0.76"	1.00"
6S20CTF20	-20	31	-20	2.13"	7.05"	4.85"	0.99"	1.00"
6S24CTF20	-24	31	-20	2.50"	7.67"	5.47"	0.99"	1.09"
6S24CTF24	-24	38	-24	2.50"	8.85"	5.78"	1.22"	1.09"
6S32CTF24	-32	38	-24	3.13"	10.41"	7.34"	1.22"	1.37"
6S32CTF32	-32	51	-32	3.13"	10.52"	7.45"	1.66"	1.37"
