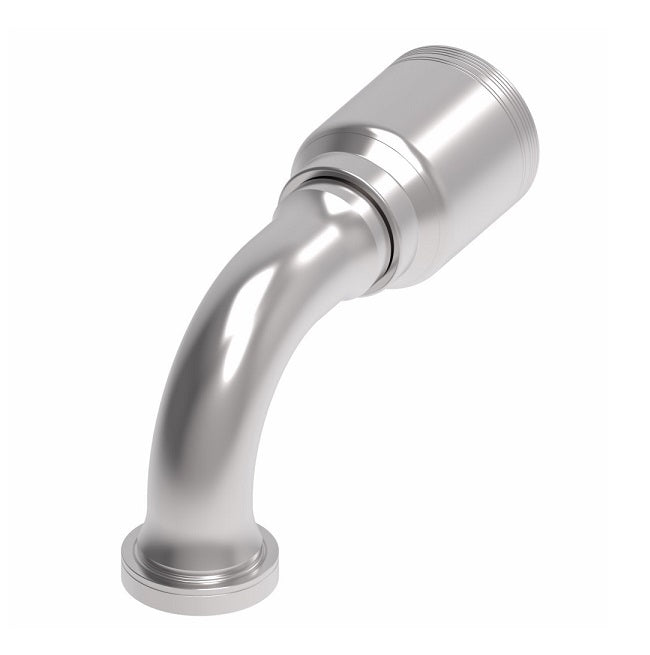

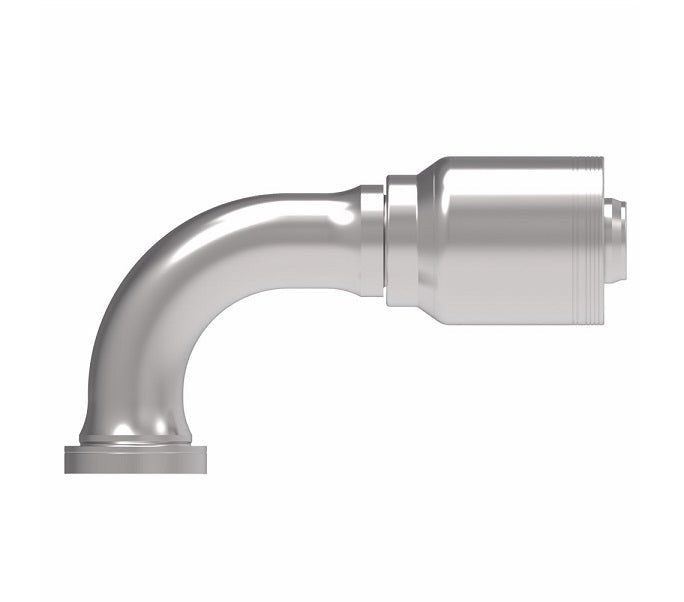

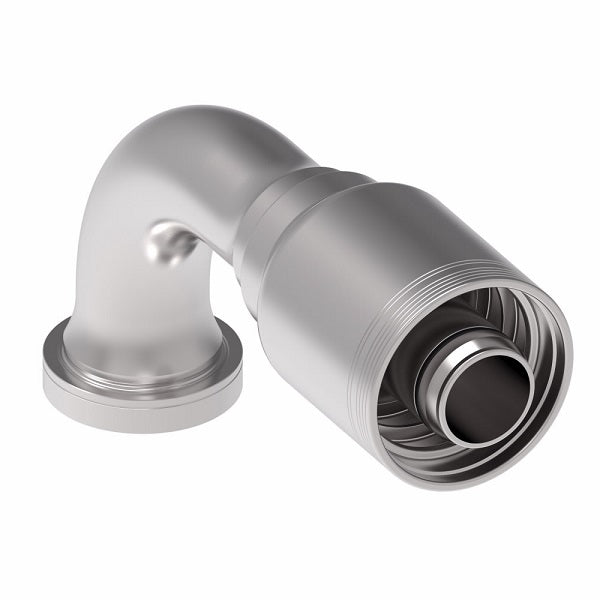

6S24FHB24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -24 Code 62 Flange x -24 Hose Barb | Steel
6S24FHB24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -24 Code 62 Flange x -24 Hose Barb | Steel
6S24FHB24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -24 Code 62 Flange x -24 Hose Barb | Steel

6S24FHB24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -24 Code 62 Flange x -24 Hose Barb | Steel

$243.32 - $243.32
$243.32
$243.32 - $243.32
$243.32

Aeroquip® by Danfoss
6 Wire 6S SAE Code 62 Flange Crimp Fitting (FHB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S24FHB24 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Code 62 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500-32 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
6S16FHB16 -16 25 -16 1.88" 4.94" 3.39" 0.76" 2.80"
6S20FHB16 -20 25 -16 2.13" 5.72" 4.15" 0.76" 3.50"
6S16FHB20 -16 31 -20 1.88" 5.82" 3.62" 0.99" 2.80"
6S20FHB20 -20 31 -20 2.13" 6.40" 4.19" 0.99" 3.50"
6S24FHB20 -24 31 -20 2.50" 7.05" 4.84" 0.99" 4.09"
6S24FHB24 -24 38 -24 2.50" 8.22" 5.15" 1.22" 4.09"
6S32FHB24 -32 38 -24 3.13" 9.74" 6.67" 1.22" 5.43"
4S32FHB32 -32 51 -32 3.13" 9.85" 6.78" 1.66" 5.43"
