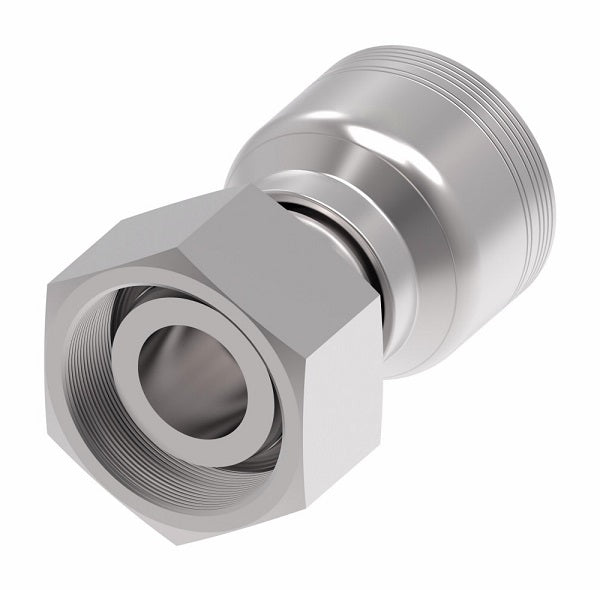

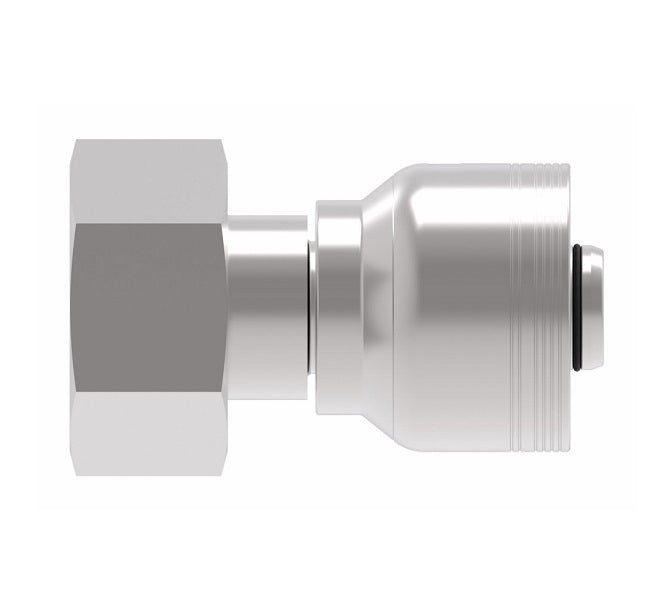

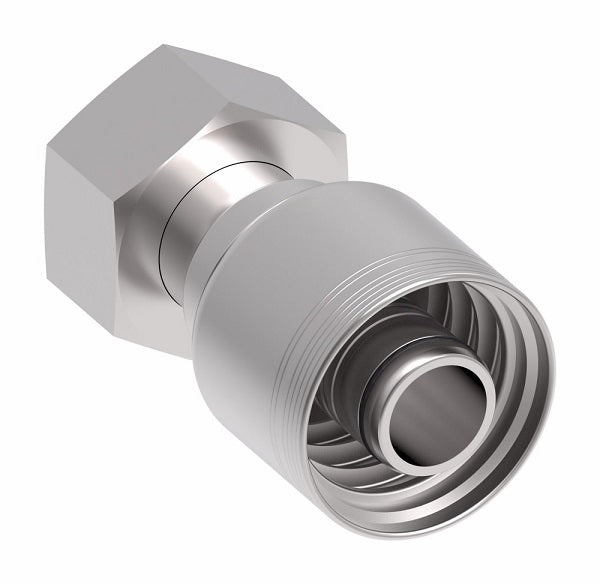

6S25DS16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) (DS) Crimp Fitting | S30 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

Original price $138.85 - Original price $138.85
Original price
$138.85
$138.85 - $138.85
Current price $138.85

Aeroquip® by Danfoss
6 Wire 6S Male DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DS) - Straight

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 6S25DS16 Danfoss
Shape (Orientation): Straight
Ends Configuration: S30 Female DIN, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Steel
Part Number
Tube OD Hose Size Thread A D E&Oslash Hex 1

DN Dash Size
6S25DS16 30 25 -16 M42X2 3.59" 2.02" 0.76" 50mm
6S32DS16 38 25 -16 M52X2 3.74" 2.18" 0.76" 60mm
6S32DS20 38 31 -20 M52X2 4.43" 2.22" 0.99" 60mm
