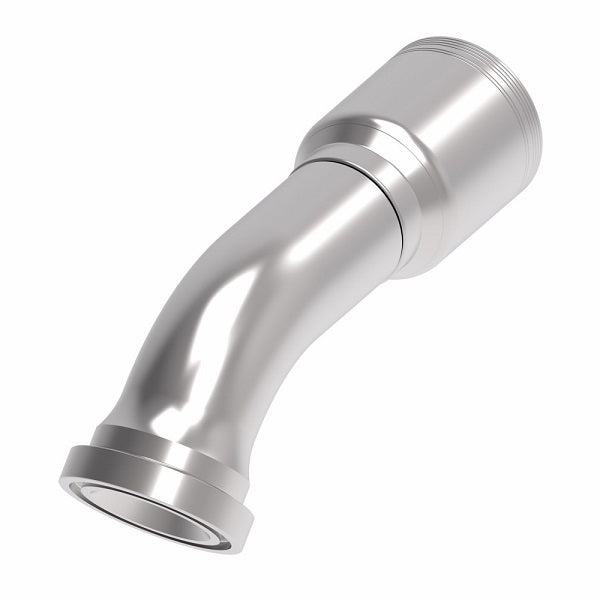

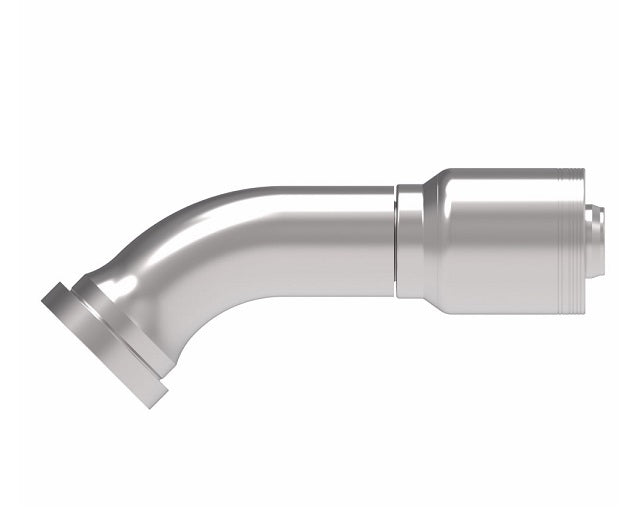

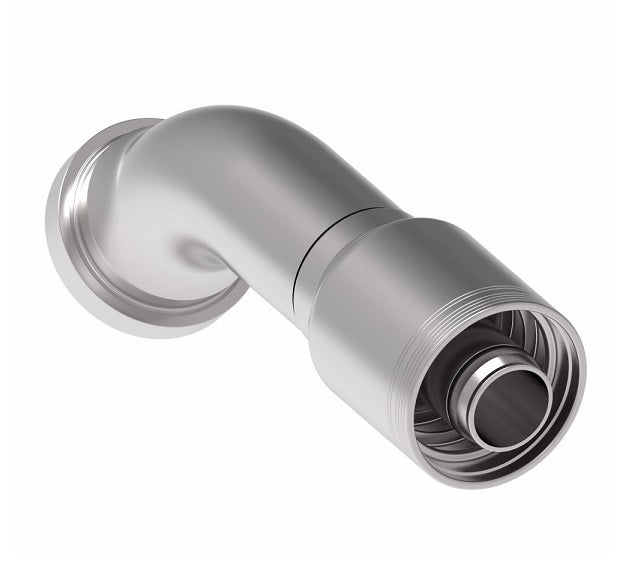

Name: 6S32CTA24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 45° Elbow (CTA) Crimp Fitting | -32 CAT Flange x -24 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S32CTA24 Danfoss
Price: 380.62 USD
Availability: InStock

$380.62 - $380.62

$380.62

$380.62 - $380.62

$380.62

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 6S32CTA24 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	2in CAT Flange, 1-1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16CTA16	-16	25	-16	1.87"	5.29"	3.72"	0.76"	1.39"
6S20CTA16	-20	25	-16	2.13"	6.02"	4.46"	0.76"	1.65"
6S20CTA20	-20	31	-20	2.13"	6.70"	4.50"	0.99"	1.65"
6S24CTA16	-24	31	-20	2.50"	7.30"	5.08"	0.99"	1.65"
6S24CTA24	-24	38	-24	2.50"	8.47"	5.40"	1.22"	1.82"
6S32CTA24	-32	38	-24	3.13"	9.93"	6.86"	1.22"	2.31"
6S32CTA32	-32	51	-32	3.13"	10.04"	6.97"	1.66"	2.31"
