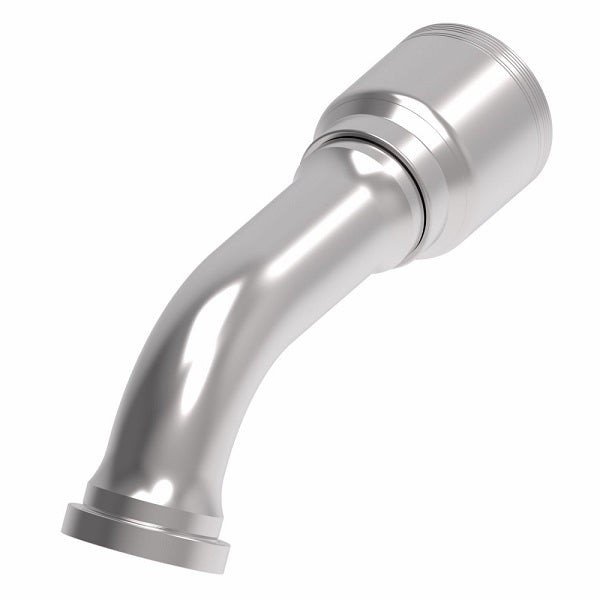

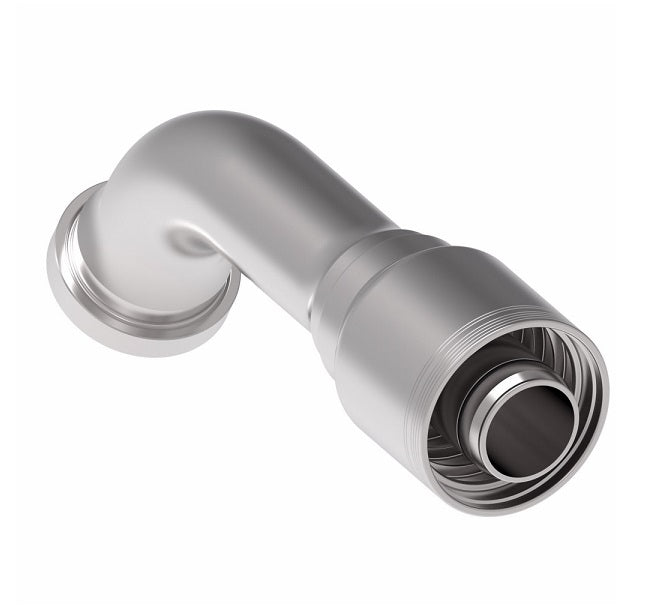

6S32CTG32 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel
6S32CTG32 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel
6S32CTG32 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel

6S32CTG32 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel

$392.06 - $392.06
$392.06
$392.06 - $392.06
$392.06

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S32CTG32 Danfoss
Shape (Orientation): 60 Degree
Ends Configuration: 2in CAT Flange, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
6S16CTG16 -16 25 -16 1.87" 6.25" 4.69" 0.76" 1.92"
6S20CTG16 -20 25 -16 2.13" 7.29" 5.73" 0.76" 2.33"
6S20CTG20 -20 31 -20 2.13" 7.98" 5.77" 0.99" 2.33"
6S24CTG20 -24 31 -20 2.50" 8.83" 6.63" 0.99" 2.62"
6S24CTG24 -24 38 -24 2.50" 10.01" 6.94" 1.22" 2.62"
6S32CTG24 -32 38 -24 3.13" 12.09" 9.02" 1.22" 3.44"
6S32CTG32 -32 51 -32 3.13" 12.20" 9.13" 1.66" 3.44"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
