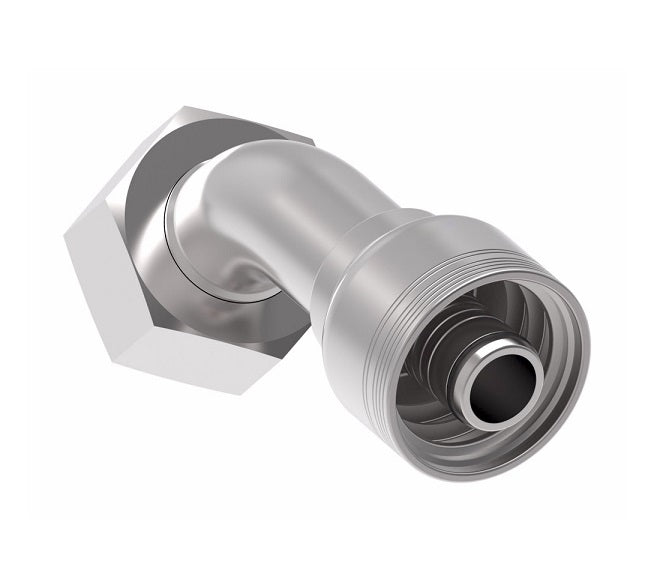

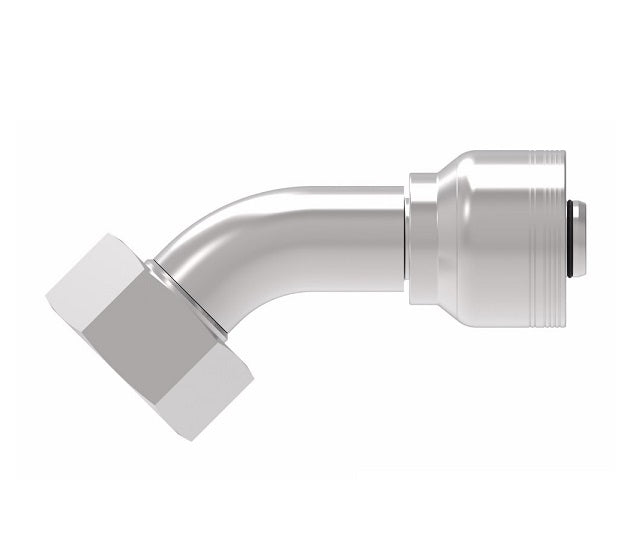

6S32DSA16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S32 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

6S32DSA16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S38 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

Name: 6S32DSA16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 45° Elbow (DSA) Crimp Fitting | S38 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S32DSA16 Danfoss
Price: 209.28 USD
Availability: InStock

$209.28 - $209.28

$209.28

$209.28 - $209.28

$209.28

Aeroquip® by Danfoss
6 Wire 6S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSA) - 45° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 6S32DSA16 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	S38 Female DIN, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
6S25DSA16	30	25	-16	M42X2	5.28"	3.72"	0.76"	1.38"	50mm
6S32DSA16	38	25	-16	M52X2	5.71"	4.15"	0.76"	1.54"	60mm
6S32DSA20	38	31	-20	M52X2	6.39"	4.19"	0.99"	1.54"	60mm
