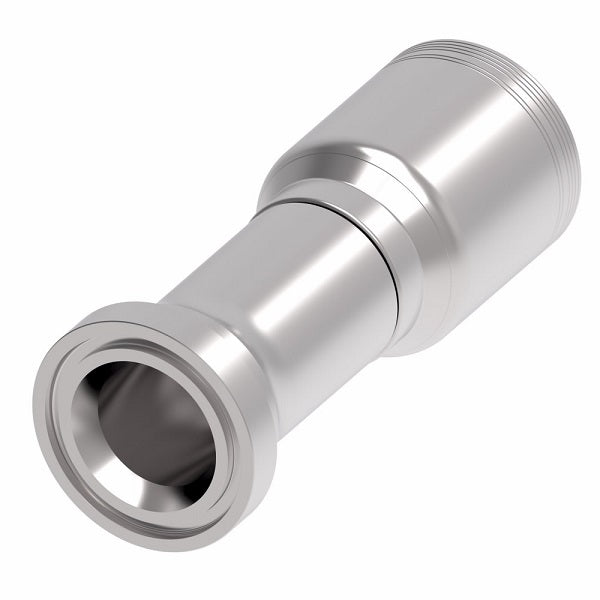

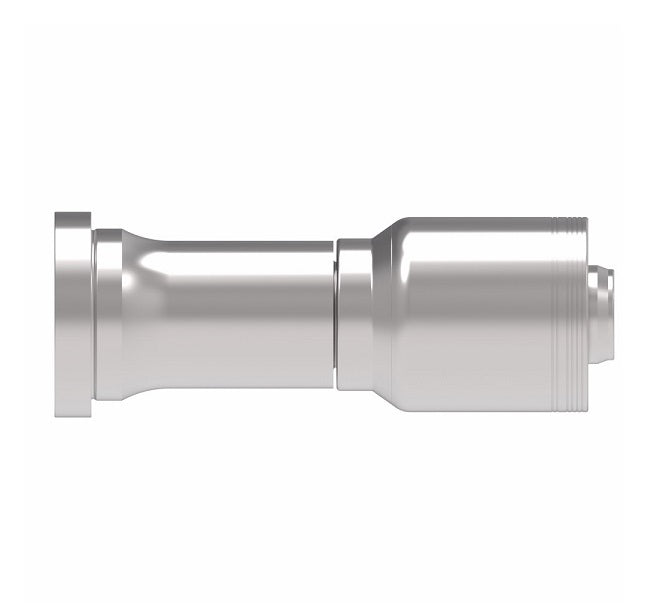

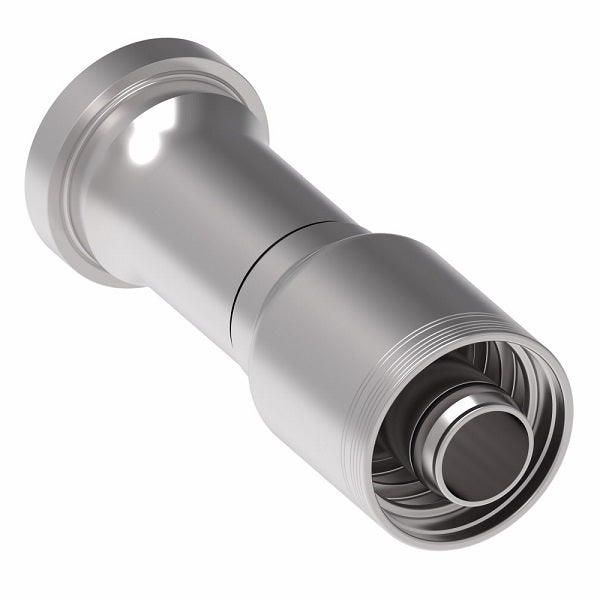

6S32FL24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange (FL) Crimp Fitting | -32 Code 61 Flange x -24 Hose Barb | Steel
6S32FL24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange (FL) Crimp Fitting | -32 Code 61 Flange x -24 Hose Barb | Steel
6S32FL24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange (FL) Crimp Fitting | -32 Code 61 Flange x -24 Hose Barb | Steel

6S32FL24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange (FL) Crimp Fitting | -32 Code 61 Flange x -24 Hose Barb | Steel

$203.14 - $203.14
$203.14
$203.14 - $203.14
$203.14

Aeroquip® by Danfoss
6 Wire 6S SAE Code 61 Flange Crimp Fitting (FL) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S32FL24 Danfoss
Shape (Orientation): Straight
Ends Configuration: 2in Code 61 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash
Dash Size DN Dash Size
6S16FL16 -16 25 -16 1.75" 3.67" 2.11" 0.76"
6S20FL20 -20 31 -20 2.00" 4.65" 2.45" 0.99"
6S24FL24 -24 38 -24 2.38" 6.75" 3.68" 1.22"
6S32FL24 -32 38 -24 2.81" 6.88" 3.81" 1.22"
6S32FL32 -32 51 -32 2.81" 6.99" 3.92" 1.66"
