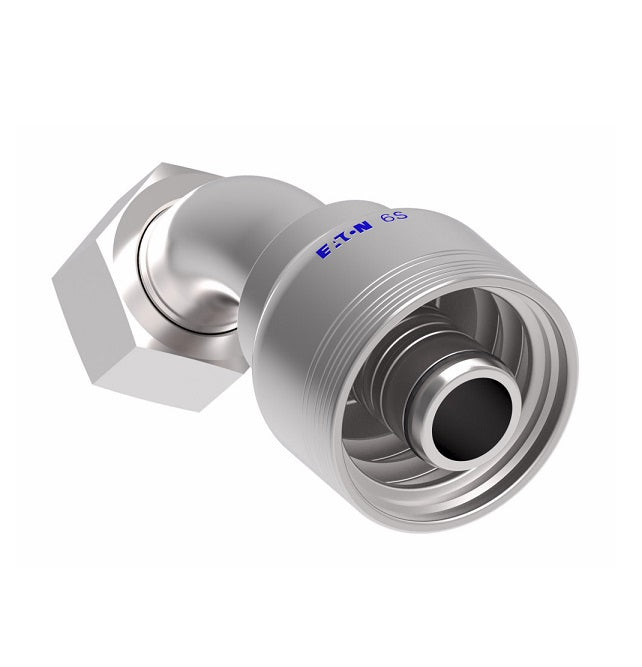

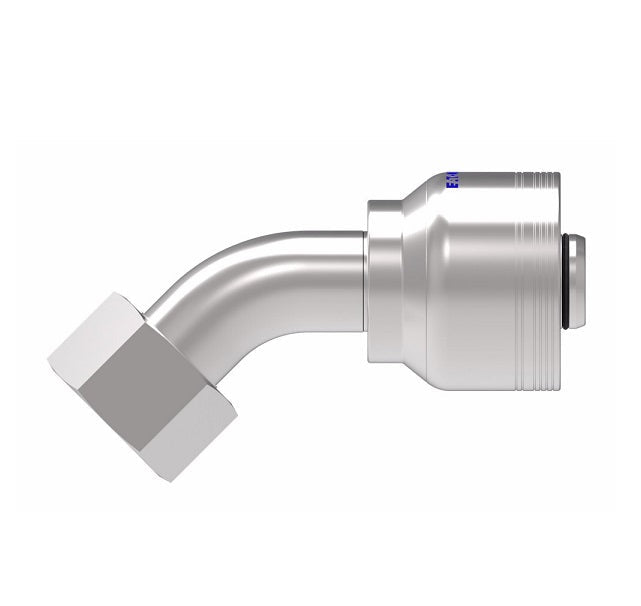

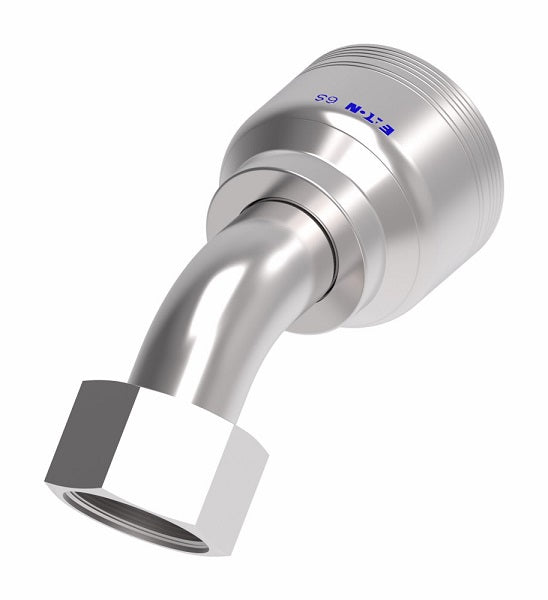

6SA16FRA16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

6SA16FRA16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

Name: 6SA16FRA16 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6SA16FRA16 Danfoss
Price: 130.18 USD
Availability: InStock

$130.18 - $130.18

$130.18

$130.18 - $130.18

$130.18

Aeroquip® by Danfoss
6 Wire 6S Female ORS Swivel (FRA) Crimp Fitting - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6SA16FRA16 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1in Female O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
6SA16FRA16	-16	25	-16	1-7/16-12	4.44"	2.87"	0.76"	1.10"	1-5/8"
6SA20FRA16	-20	25	-16	1-11/16-12	5.38"	3.82"	0.76"	1.22"	1-7/8"
6SA20FRA20	-20	31	-20	1-11/16-12	6.07"	3.86"	0.99"	1.22"	1-7/8"
6SA24FRA24	-24	38	-24	2-12	8.35"	5.28"	1.22"	1.69"	2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
