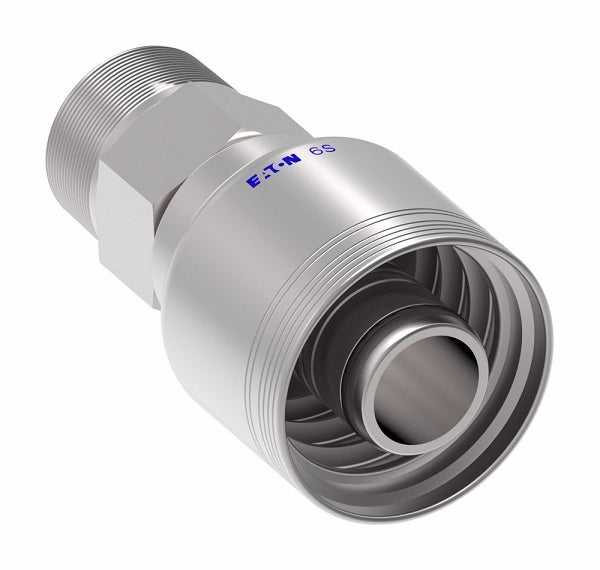

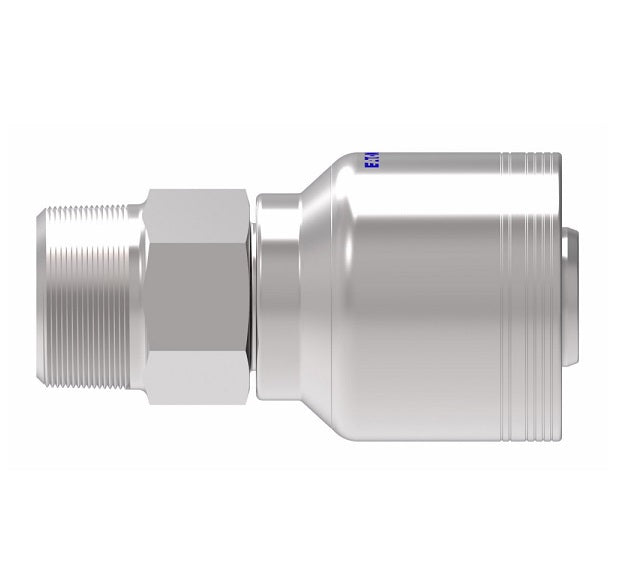

6SA20MP20 Aeroquip by Danfoss | 6 Wire 6S Male Pipe NPTF Rigid (MP) Crimp Fitting | -20 Male Pipe NPTF Rigid x -20 Hose Barb | Steel

6SA20MP20 Aeroquip by Danfoss | 6 Wire 6S Male Pipe NPTF Rigid (MP) Crimp Fitting | -20 Male Pipe NPTF Rigid x -20 Hose Barb | Steel

Name: 6SA20MP20 Aeroquip by Danfoss | 6 Wire 6S Male Pipe NPTF Rigid (MP) Crimp Fitting | -20 Male Pipe NPTF Rigid x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6SA20MP20 Danfoss
Price: 75.04 USD
Availability: InStock

$75.04 - $75.04

$75.04

$75.04 - $75.04

$75.04

Aeroquip® by Danfoss
6 Wire 6S Male Pipe NPTF Rigid Crimp Fitting (MP) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6SA20MP20 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Male NPTF, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1
6SA16MP16	-16	25	-16	1-11-1/2	3.70"	2.13"	0.75"	1-3/8"
6SA20MP20	-20	31	-20	1-1/4-11-1/2	4.74"	2.54"	0.99"	1-11/16"
6SA24MP24	-24	38	-24	1-1/2-11-1/2	5.64"	2.57"	1.22"	2"
4SA32MP32	-32	51	-32	2-11-1/2	5.91"	2.84"	1.66"	2-1/2"
