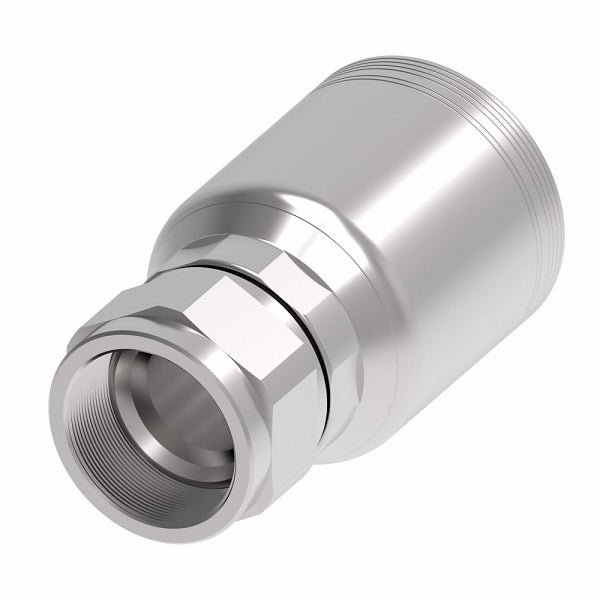

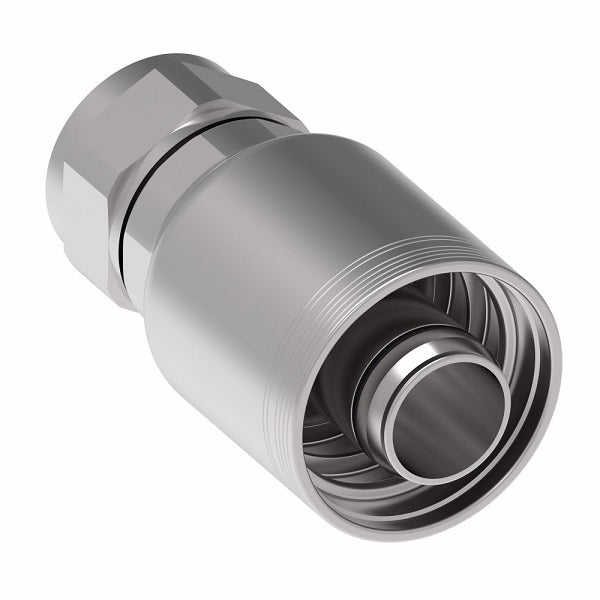

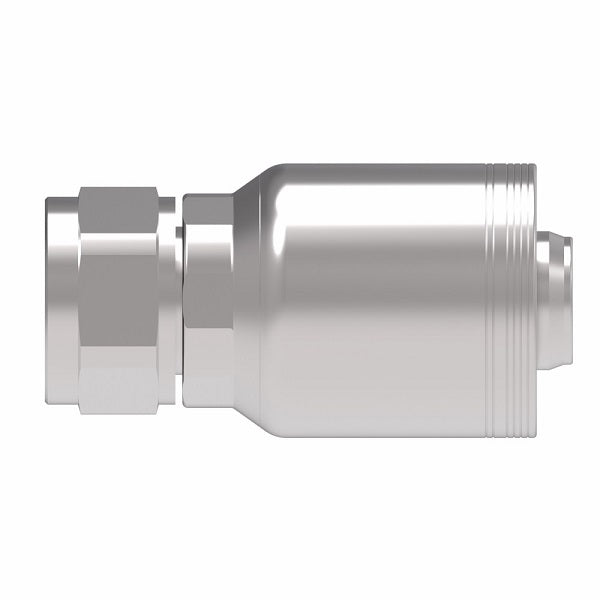

6SA24FJ24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel (FJ) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel
6SA24FJ24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel (FJ) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel
6SA24FJ24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel (FJ) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel

6SA24FJ24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel (FJ) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel

$126.90 - $126.90
$126.90
$126.90 - $126.90
$126.90

Aeroquip® by Danfoss
6 Wire 6S Female JIC/37° Swivel Crimp Fitting (FJ) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6SA24FJ24 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female JIC, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1

 Hex 2
Dash Size DN Dash Size
6SA16FJ16 -16 25 -16 1-5/16-12 3.51" 1.94" 0.76" 1-5/8" 1-1/2"
6SA20FJ20 -20 31 -20 1-5/8-12 4.03" 1.82" 0.99" 1-13/16" 2"
6SA24FJ20 -24 31 -20 1-7/8-12 4.23" 2.03" 0.99" 1-13/16" 2-1/4"
6SA24FJ24 -24 38 -24 1-7/8-12 5.31" 2.24" 1.22" 2-1/4" 2-1/4"
6SA32FJ32 -32 51 -32 2-1/2-12 5.75" 2.68" 1.66" - 2-7/8"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
