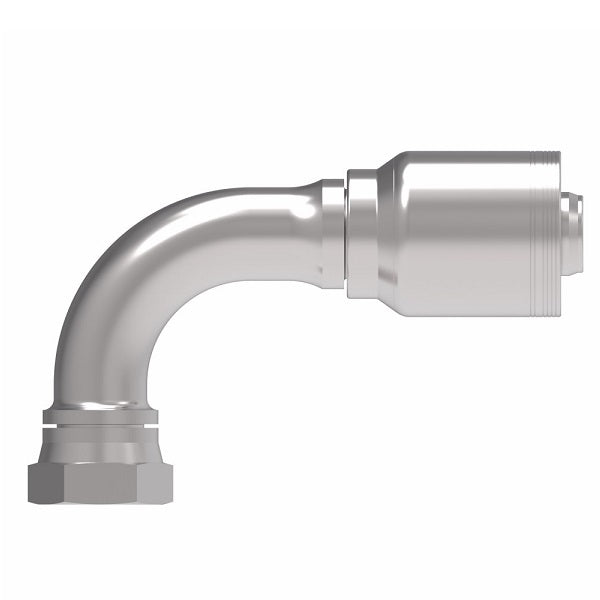

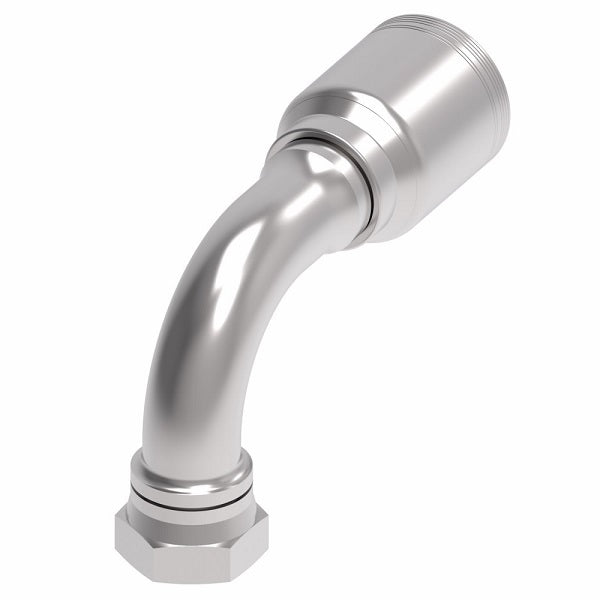

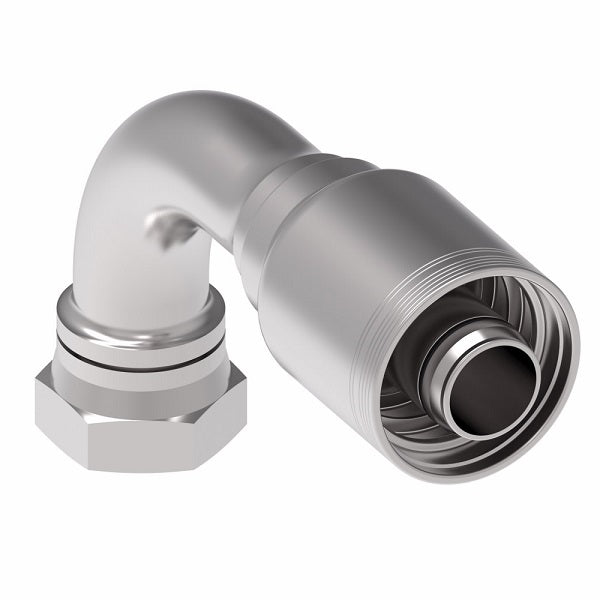

6SA24FJB24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 90° Elbow (FJB) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel
6SA24FJB24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 90° Elbow (FJB) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel
6SA24FJB24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 90° Elbow (FJB) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel

6SA24FJB24 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 90° Elbow (FJB) Crimp Fitting | -24 Female JIC/37° Swivel x -24 Hose Barb | Steel

$239.66 - $239.66
$239.66
$239.66 - $239.66
$239.66

Aeroquip® by Danfoss
6 Wire 6S Female JIC/37° Swivel Crimp Fitting (FJB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6SA24FJB24 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Female JIC, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
    The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst
    The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst
    The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst
    The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
6SA16FJB16 -16 25 -16 1-5/16-12 4.45" 2.89" 0.75" 2.80" 1-1/2"
6SA20FJB20 -20 31 -20 1-5/8-12 5.25" 3.05" 0.99" 3.07" 2"
6SA24FJB24 -24 38 -24 1-7/8-12 8.22" 5.15" 1.22" 4.09" 2-1/4"
