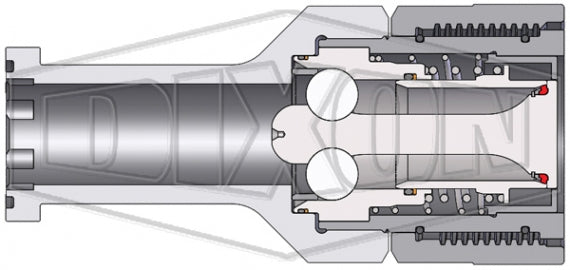

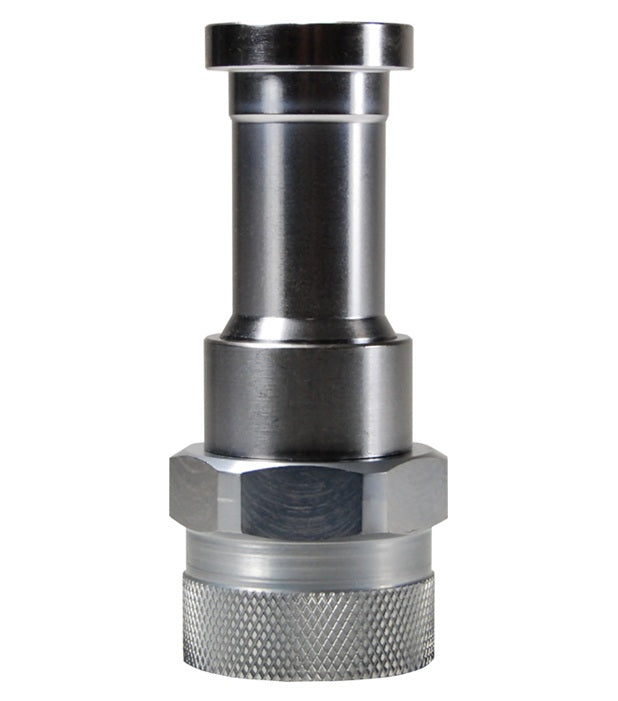

6VEPFH6 by Dixon Valve | Hydraulic Quick Disconnect Coupling | VEP-Series | 3/4" Code 62 Flange Head x 3/4" Body Size | Socket | Nitrile Seal | Steel

Save $10.94

$163.97

$163.97 - $163.97

$163.97

$153.03

$153.03 - $153.03

$153.03

Dixon Valve & Coupling
Hydraulic Coupling: VEP-Series Code 62 Flange Head Coupler

Quantity

Specifications for Variant SKU: 6VEPFH6 Dixon
Series:	VEP-Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female V-Series QD Interchange, 3/4in Code 62 Flange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Stucchi VEP-P/VEP-HD Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET-Series, and Holmbury HFT Series
Features:	Two-stage valving to protect critical sealing components during pressurized connection & disconnection. Posi-Lock valve system secures valving during surge-flow conditions to prevent high-velocity damage. No-spill, flush face valve minimizes air inclusion during connection and spillage during disconnection. Threaded design eliminates premature wear or brinelling commonly found with locking ball designs when subjected to high impulse pressures.
Construction:	Machined components are manufactured using solid steel bar stock. Stainless steel retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Zinc Nickel for superior corrosion resistance.
Seal Components:	Plugs have Nitrile-energized PTFE valve seals, with a temperature range of -40°F to 250°F (-40C° to 121°C). 3/8" plugs have molded polyurethane valve seals, with a temperature range of -65°F to 212°F (-54°C to 100°C). 3/8" to 3/4" valve stems have molded acetal seals, with a temperature range of -65°F to 212°F (-54°C to 100°C). 1" to 2" valve stems have molded polyurethane seals, with a temperature range of -65°F to 212°F (-54°C to 100°C). Ancillary coupler and plug seals are Nitrile with a temperature range of -40°F to 250°F (-40C° to 121°C). TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage.
How It Works:	Prior to connecting, thoroughly clean all mating surfaces and threads on both halves, the pull the coupler sleeve forward. To initiate the connection, align the coupler and plug, pushing/turning the coupler sleeve towards the plug while engaging the threads. Keep the mating halves aligned during the connection process. Allow the threads to pull the coupler onto the plug, do not push the coupler onto the plug. The first phase of the connection should be threaded by hand, without the use of tools. Please note the connection sleeve may seize when dirt and debris accumulate in the threads - wipe away debris with a cloth, compressed air or a brush. The second phase of the connection may require a wrench if the pressure is higher than anticipated. Continue to thread the coupler sleeve onto the plug until the end of the sleeve meets the plug body. To disconnect, use a wrench to break the coupler sleeve free and keep the mating halves aligned during the disconnection process.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

VEP-Series \| Interchange Rated Pressure Chart

Body Size	Pressure Rating		Burst Pressure			Max. Pressure Connect³	Max. Pressure Disconnect³	Rated Flow ΔP=21.75 PSI
Body Size	ISO Working¹	Max. Impulse²	Connected	Coupler	Plug	Max. Pressure Connect³	Max. Pressure Disconnect³	Rated Flow ΔP=21.75 PSI
1/4""	6,000 PSI 400 Bar	9,000 PSI 625 Bar	24,000 PSI 1,650 Bar	22,000 PSI 1,525 Bar	22,000 PSI 1,525 Bar	5,500 PSI 375 Bar	5,500 PSI 375 Bar	3.5 GPM	13 L/min
3/8"	5,500 PSI 375 Bar	8,000 PSI 550 Bar	22,000 PSI 1,525 Bar	18,000 PSI 1,250 Bar	20,000 PSI 1,375 Bar	4,500 PSI 300 Bar	4,500 PSI 300 Bar	10.5 GPM	40" L/min
1/2"	5,500 PSI 375 Bar	8,000 PSI 550 Bar	22,000 PSI 1,525 Bar	18,000 PSI 1,250 Bar	20,000 PSI 1,375 Bar	4,500 PSI 300 Bar	4,500 PSI 300 Bar	17.5 GPM	66 L/min
3/4"	5,500 PSI 375 Bar	8,000 PSI 550 Bar	22,000 PSI 1,525 Bar	18,000 PSI 1,250 Bar	20,000 PSI 1,375 Bar	4,500 PSI 300 Bar	4,500 PSI 300 Bar	22.7 GPM	85 L/min
1"	5,500 PSI 375 Bar	7,500 PSI 525 Bar	22,000 PSI 1,525 Bar	14,500 PSI 1,000 Bar	20,000 PSI 1,375 Bar	3,625 PSI 250 Bar	3,625 PSI 250 Bar	32.5 GPM	123 L/min
1-1/4"	5,000 PSI 350 Bar	7,000 PSI 475 Bar	20,000 PSI 1,375 Bar	14,500 PSI 1,000 Bar	16,000 PSI 1,100 Bar	3,625 PSI 250 Bar	3,625 PSI 250 Bar	46.4 GPM	174 L/min
1-1/2"	4,500 PSI 300 Bar	5,800 PSI 400 Bar	18,000 PSI 1,250 Bar	12,000 PSI 8,325 Bar	14,500 PSI 1,000 Bar	3,000 PSI 200 Bar	3,000 PSI 200 Bar	95.0 GPM	360 L/min
2"	4,000 PSI 275 Bar	5,000 PSI 350 Bar	18,000 PSI 1,250 Bar	12,000 PSI 8,325 Bar	14,500 PSI 1,000 Bar	3,000 PSI 200 Bar	3,000 PSI 200 Bar	172.5 GPM	653 L/min

1 Couplings impulse tested in accordance with ISO18869 for 1,000,000 cycles connected and 100,000 cycles disconnected at 133% of ISO working pressure.
2 Couplings impulse tested in accordance with ISO18869 for 100,000 cycles connected and disconnected at maximum impulse pressure listed.
3 System temperature for maximum connect/disconnect pressure must not exceed 150°F (65°C)

VEP-Series \| Code 62 Flange Head Coupler

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD
6VEPFH6	Socket/Female	3/4"	3/4" Code 62 Flange	Steel	4.95" (125.63mm)	2.20" (55.88mm)
8VEPFH8	Socket/Female	1"	1" Code 62 Flange	Steel	5.34" (135.64mm)	2.47" (62.74mm)
10VEPFH10	Socket/Female	1-1/4"	1-1/4 Code 62 Flange	Steel	6.26" (158.88mm)	2.70" (68.58mm)
12VEPFH12	Socket/Female	1-1/2"	1-1/2 Code 62 Flange	Steel	8.02" (203.71mm)	3.74" (95.00mm)

VEP-Series \| Code 62 Flange Head Plug

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD
VEP6FH6	Plug/Male	3/4"	3/4" Code 62 Flange	Steel	5.70" (144.78mm)	1.98" (50.29mm)
VEP8FH8	Plug/Male	1"	1" Code 62 Flange	Steel	6.40" (162.59mm)	2.20" (55.88mm)
VEP10FH10	Plug/Male	1-1/4"	1-1/4 Code 62 Flange	Steel	7.30" (185.42mm)	2.73" (69.34mm)
VEP12FH12	Plug/Male	1-1/2"	1-1/2 Code 62 Flange	Steel	9.26" (235.25mm)	3.74" (94.87mm)
