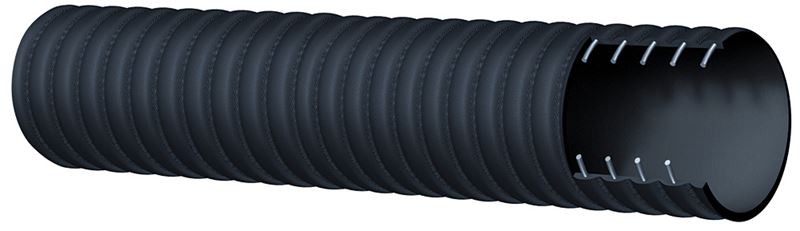

6C5AA300X100 Alfagomma by Kuriyama | 6C5AA Series | Corrugated Tank Truck Hose | 3" ID | 3.44" OD | 150 PSI | Black | 100ft Length

Save $674.42

$2,215.13

$2,215.13 - $2,215.13

$2,215.13

$1,540.71

$1,540.71 - $1,540.71

$1,540.71

Kuriyama of America Inc.
Alfagomma | 6C5AA Series | Corrugated Tank Truck Hose

For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.

Package Quantity: 100 Foot

Specifications for Variant SKU: 6C5AA300X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	6C5AA Series
Hose Color(s):	Black
Internal Diameter:	3in
Outer Diameter:	3.44in
Tubing Construction:	Nitrile
Cover Construction:	Chloroprene
Special Properties:	Conductive Tube

SPECIFICATIONS

Application:	For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.
Other Ratings:	-	Tube:	Black conductive NBR.
Reinforcement:	High tensile textile cords with flexible steel helix wire.	Cover:	Black corrugated CR - abrasion, ozone, and hydrocarbon resistant.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Quick-Acting couplings or combination nipples attached with bands.
Branding:	ALFAGOMMA - ITALY T6C5 10 BAR (150 PSI) PETROLEUM TANK TRUCK (in red letters)

Part Number 100ft	Part Number 20ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 100ft	Part Number 20ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
6C5AA200X100	-	2"	51mm	2.48"	63mm	150 PSI	30 in Hg	4"	0.85 lbs/ft
6C5AA300X100	-	3"	76mm	3.44"	90mm	150 PSI	27 in Hg	6"	1.57 lbs/ft
6C5AA400X100	-	4"	102mm	4.57"	116mm	150 PSI	27 in Hg	8"	2.21 lbs/ft
-	6C5AA600X20	6"	152mm	6.54"	166mm	150 PSI	27 in Hg	12"	3.59 lbs/ft
