6GC80-24x24 Couplamatic Grip Crimp 6GC Series Coupling - Extra Heavy Duty Flange - Straight - 1-1/2" Hose ID - 1-1/2" Flange Size (for use on Caterpillar® Equipment)

6GC80-24x24 by Couplamatic | Grip Crimp 6GC Series Coupling | Extra Heavy Duty Flange | 1-1/2" Hose ID x 1-1/2" Flange Size | for use on Caterpillar® Equipment | Straight | Trivalent Zinc Plating

Save $10.91 Save $10.91
$98.21
$98.21 - $98.21
$98.21
$87.30
$87.30 - $87.30
$87.30

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Extra Heavy Duty Flange - Straight (For use on Caterpillar® Equipment)
Specifications for Variant SKU: 6GC80-24x24 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Caterpillar Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

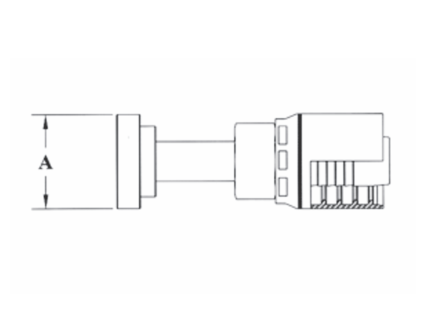

    Part Number Hose ID Flange Size A-DiaInches Cross Reference Part Numbers
    Parker 78 Parker 79
    6GC80-12x12 3/4" 3/4" 1.62" 1XA78-12-12 1XA79-12-12
    6GC80-12x16 3/4" 1" 1.88" - -
    6GC80-16x16 1" 1" 1.88" 1XA78-16-16 1XA79-16-16
    6GC80-16x20 1" 1-1/4" 2.12" - -
    6GC80-20x20 1-1/4" 1-1/4" 2.12" 1XA78-20-20 1XA79-20-20
    6GC80-24x24 1-1/2" 1-1/2" 2.50" 1XA78-24-24 1XA79-24-24
    6GC80-32x32 2" 2" 3.12" 1XAS6-32-32 -
