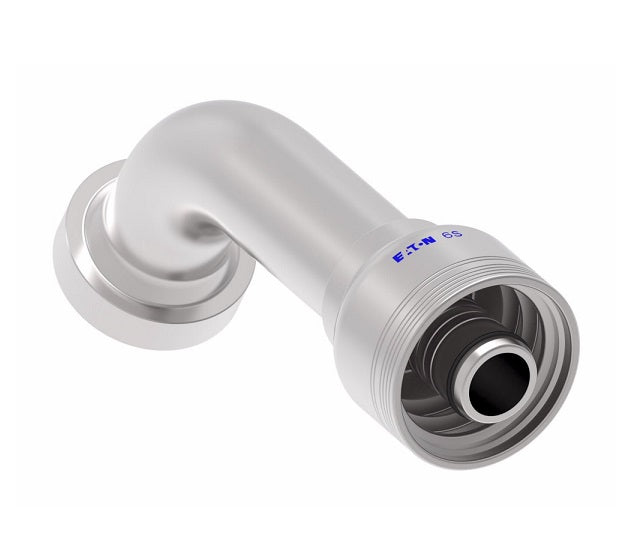

6S16CTG16 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

6S16CTG16 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

Name: 6S16CTG16 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S16CTG16 Danfoss
Price: 138.06 USD
Availability: InStock

$138.06 - $138.06

$138.06

$138.06 - $138.06

$138.06

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6S16CTG16 Danfoss
Shape (Orientation):	60 Degree
Ends Configuration:	1in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16CTG16	-16	25	-16	1.87"	6.25"	4.69"	0.76"	1.92"
6S20CTG16	-20	25	-16	2.13"	7.29"	5.73"	0.76"	2.33"
6S20CTG20	-20	31	-20	2.13"	7.98"	5.77"	0.99"	2.33"
6S24CTG20	-24	31	-20	2.50"	8.83"	6.63"	0.99"	2.62"
6S24CTG24	-24	38	-24	2.50"	10.01"	6.94"	1.22"	2.62"
6S32CTG24	-32	38	-24	3.13"	12.09"	9.02"	1.22"	3.44"
6S32CTG32	-32	51	-32	3.13"	12.20"	9.13"	1.66"	3.44"
