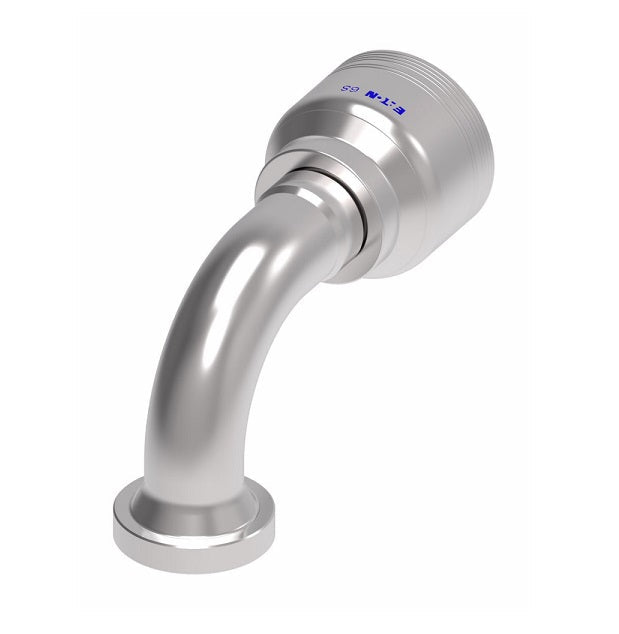

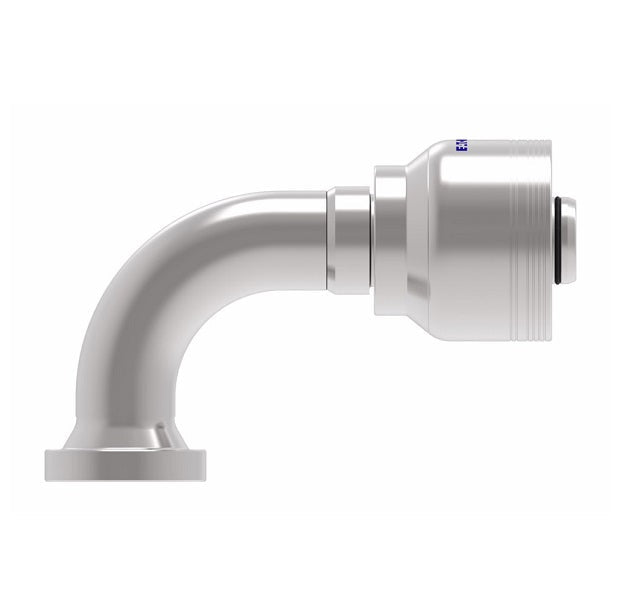

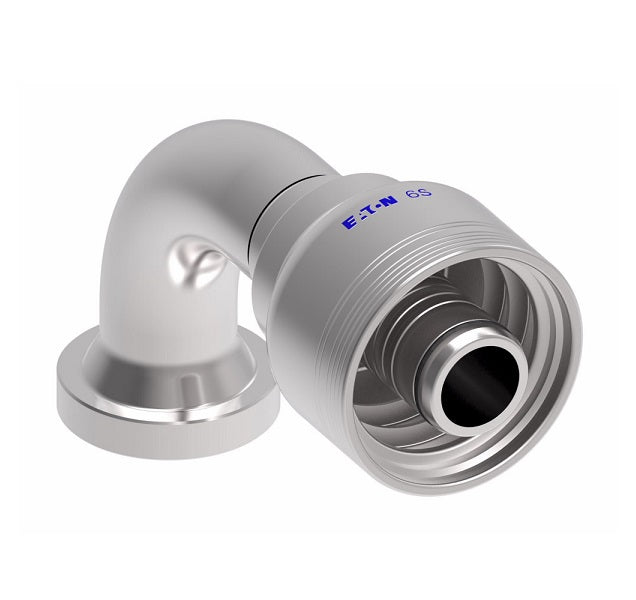

6S16FHB16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

6S16FHB16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel | Pack of 10

$1,157.00 - $1,157.00

$1,157.00

$1,157.00 - $1,157.00

$1,157.00

Aeroquip® by Danfoss
6 Wire 6S SAE Code 62 Flange Crimp Fitting (FHB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 6S16FHB16 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1in Code 62 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500-32 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16FHB16	-16	25	-16	1.88"	4.94"	3.39"	0.76"	2.80"
6S20FHB16	-20	25	-16	2.13"	5.72"	4.15"	0.76"	3.50"
6S16FHB20	-16	31	-20	1.88"	5.82"	3.62"	0.99"	2.80"
6S20FHB20	-20	31	-20	2.13"	6.40"	4.19"	0.99"	3.50"
6S24FHB20	-24	31	-20	2.50"	7.05"	4.84"	0.99"	4.09"
6S24FHB24	-24	38	-24	2.50"	8.22"	5.15"	1.22"	4.09"
6S32FHB24	-32	38	-24	3.13"	9.74"	6.67"	1.22"	5.43"
4S32FHB32	-32	51	-32	3.13"	9.85"	6.78"	1.66"	5.43"
