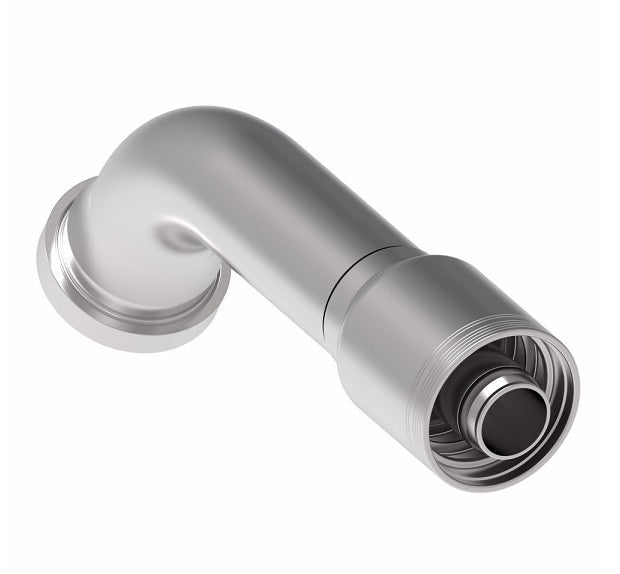

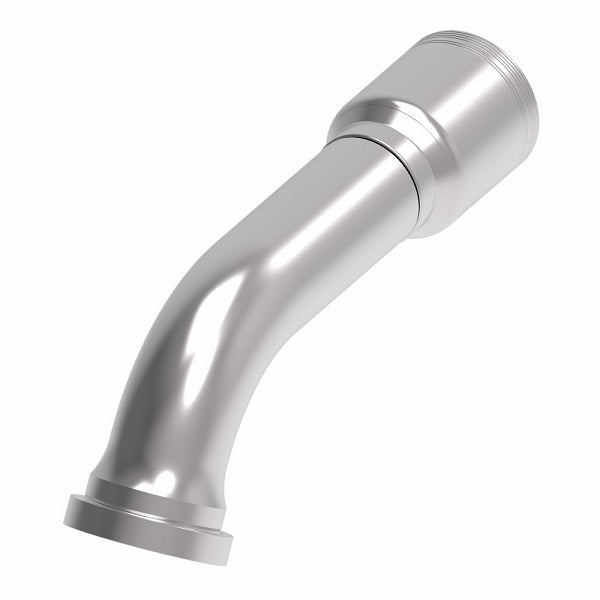

6S32CTG24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
6S32CTG24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
6S32CTG24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel

6S32CTG24 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 60° Elbow (CTG) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel

$407.70 - $407.70
$407.70
$407.70 - $407.70
$407.70

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S32CTG24 Danfoss
Shape (Orientation): 60 Degree
Ends Configuration: 1-1/2in CAT Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
6S16CTG16 -16 25 -16 1.87" 6.25" 4.69" 0.76" 1.92"
6S20CTG16 -20 25 -16 2.13" 7.29" 5.73" 0.76" 2.33"
6S20CTG20 -20 31 -20 2.13" 7.98" 5.77" 0.99" 2.33"
6S24CTG20 -24 31 -20 2.50" 8.83" 6.63" 0.99" 2.62"
6S24CTG24 -24 38 -24 2.50" 10.01" 6.94" 1.22" 2.62"
6S32CTG24 -32 38 -24 3.13" 12.09" 9.02" 1.22" 3.44"
6S32CTG32 -32 51 -32 3.13" 12.20" 9.13" 1.66" 3.44"
