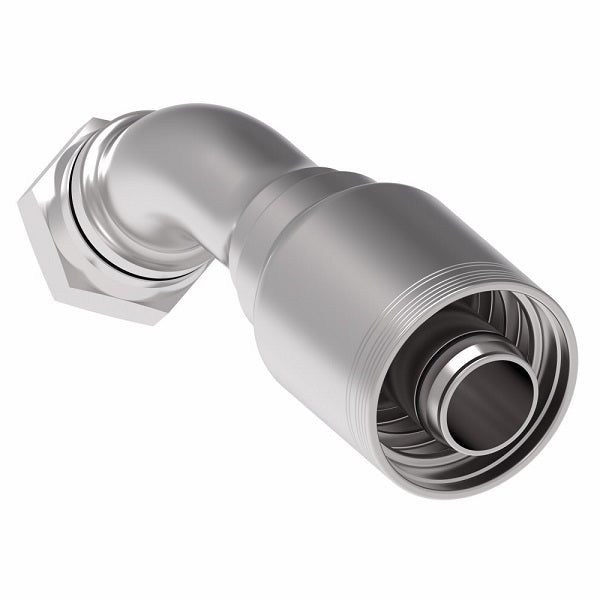

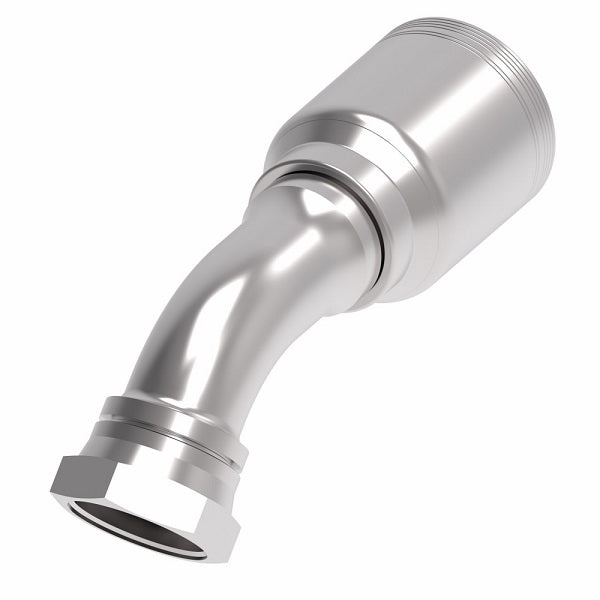

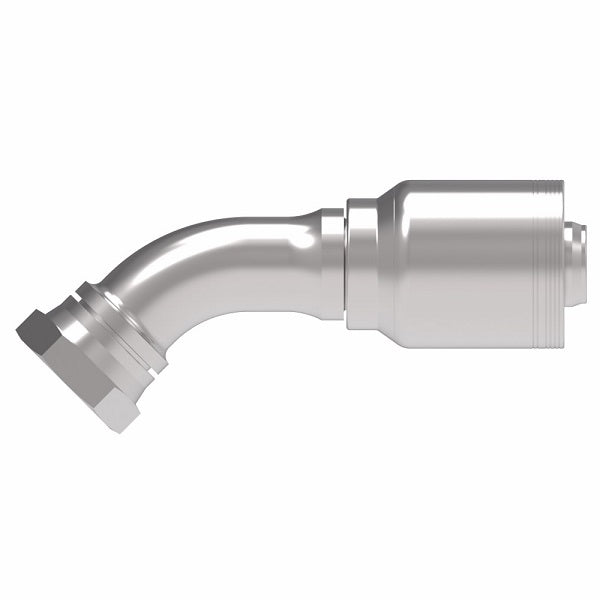

Name: 6SA24FRA24 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6SA24FRA24 Danfoss
Price: 299.42 USD
Availability: InStock

$299.42 - $299.42

$299.42

$299.42 - $299.42

$299.42

Aeroquip® by Danfoss
6 Wire 6S Female ORS Swivel (FRA) Crimp Fitting - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6SA24FRA24 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/2in Female O-Ring Face Seal, 1-1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
6SA16FRA16	-16	25	-16	1-7/16-12	4.44"	2.87"	0.76"	1.10"	1-5/8"
6SA20FRA16	-20	25	-16	1-11/16-12	5.38"	3.82"	0.76"	1.22"	1-7/8"
6SA20FRA20	-20	31	-20	1-11/16-12	6.07"	3.86"	0.99"	1.22"	1-7/8"
6SA24FRA24	-24	38	-24	2-12	8.35"	5.28"	1.22"	1.69"	2-1/4"
