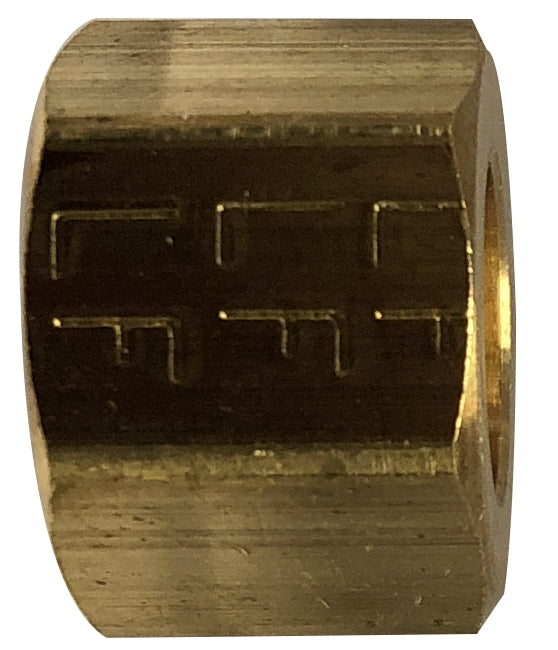

700061-07 Midland Lead Free Compression Fitting - Nut - 7/16" Tube OD - Brass

700061-07 by Midland | Lead Free Compression Fitting | 7/16" Tube OD Nut | Brass | Replaces: 18038LF

Save $1.66 Save $1.66
$4.15
$4.15 - $4.15
$4.15
$2.49
$2.49 - $2.49
$2.49

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Nut

Inventory @ Manufacturers Warehouse: 289 Units
Specifications for Variant SKU: 700061-07 Midland
Shape (Orientation): No Orientation
Material(s): Lead Free Brass
Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free

SPECIFICATIONS

Applications: Water, Gasoline, Oil, and Vacuum Lines. Used With: Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range: -40°F to +250°F Conformance: Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)
Features:
  • Three piece construction- nut, sleeve (or ferrule) and body.
  • Easy to disassemble, no flaring tool required.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/8-18
Crossover Series:
LF261
Part Number Tube OD
700061-02 1/8"
700061-03 3/16"
700061-04 1/4"
700061-05 5/16"
700061-06 3/8"
700061-07 7/16"
700061-08 1/2"
700061-10 5/8"
700061-12 3/4"
700061-14 7/8"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
