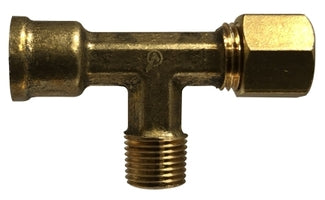

700075-040202 Midland Lead Free Compression Fitting - Tee - 1/4" Tube OD x 1/8" Female Pipe x 1/8" Male Pipe - Brass

700075-040202 by Midland | Lead Free Compression Fitting | 1/4" Tube OD x 1/8" Female Pipe x 1/8" Male Pipe | Tee | Brass | Replaces: 18307LF

Save $4.71

$11.77

$11.77 - $11.77

$11.77

$7.06

$7.06 - $7.06

$7.06

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Tee

Specifications for Variant SKU: 700075-040202 Midland
Shape (Orientation):	Tee
Ends Configuration:	1/4in Tube Compression, 1/8in Female NPT, 1/8in Male NPT
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Water, Gasoline, Oil, and Vacuum Lines.	Used With:	Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range:	-40°F to +250°F	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Three piece construction - nut, sleeve (or ferrule) and body. Easy to disassemble, no flaring tool required.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/8-18

Part Number	Tube OD x Female Pipe x Male Pipe
700075-040202	1/4" x 1/8" x 1/8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
