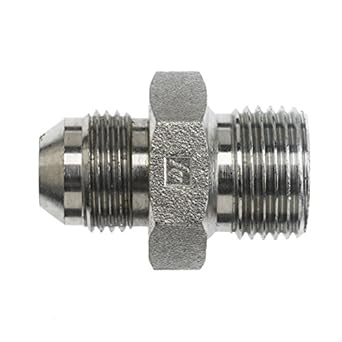

7002-16-08 by Brennan Inc. | -16 Male JIC x -08 Male BSPP | Straight | Steel

7002-16-08 by Brennan Inc. | -16 Male JIC x -08 Male BSPP | Straight | Steel

$11.94 - $11.94
$11.94
$15.15
$15.15 - $15.15
$15.15

Brennan Inc.
Conversion Adapters: 7002 - Male JIC x Male BSPP Straight
Specifications for Variant SKU: 7002-16-08 Brennan
Shape (Orientation): Straight
Ends Configuration: 1in Male JIC, 1/2in Male BSPP
Material(s): Steel
Part Number Material TubeO.D B1JIC 37° B2BSPP B1Drill B2Drill LLength CHex
7002-04-06 Steel 1/4" 7/16-20" 3/8-19" 4.0mm 9.0mm 35.5mm 22.0mm
7002-05-04 Steel 5/16" 1/2-20" 1/4-19" 6.0mm 6.0mm 32.00mm 18.0mm
7002-05-06 Steel 5/16" 1/2-20" 3/8-19" 6.0mm 9.5mm 34.0mm 22.0mm
7002-06-04 Steel 3/8" 9/16-18" 1/4-19" 6.00mm 6.30mm 32.8mm 19.00mm
7002-06-06 Steel 3/8" 9/16-18" 3/8-19" 7.5mm 7.90mm 34.1mm 22.0mm
7002-06-08 Steel 3/8" 9/16-18" 1/2-14" 7.54mm 12.70mm 36.50mm 27.00mm
7002-08-04 Steel 1/2" 3/4-16" 1/4-19" 9.93mm 6.00mm 36.00mm 20.00mm
7002-08-06 Steel 1/2" 3/4-16" 3/8-19" 9.93mm 9.53mm 37.50mm 22.00mm
7002-08-08 Steel 1/2" 3/4-16" 1/2-14" 9.93mm 12.70mm 41.00mm 27.0mm
7002-08-10 Steel 1/2" 3/4-16" 5/8-14" 9.60mm 12.00mm 44.00mm 30.00mm
7002-10-10 Steel 5/8" 7/8-14" 5/8-14" 12.29mm 15.20mm 47.50mm 30.00mm
7002-12-12 Steel 3/4" 1-1/16-12" 3/4-14" 15.47mm 18.20mm 52.00mm 32.00mm
7002-12-16 Steel 3/4" 1-1/16-12" 1-11" 15.5mm 22.0mm 55.5mm 41.0mm
7002-14-12 Steel 7/8" 1-3/16-12" 3/4-14" 17.0mm 17.0mm 53.2mm 32.0mm
7002-16-08 Steel 1" 1-5/16-12" 1/2-14" 24.4mm 11.5mm 50.0mm 35.0mm
7002-16-12 Steel 1" 1-5/16-12" 3/4-14" 21.44mm 18.20mm 53.50mm 35.0mm
7002-16-16 Steel 1" 1-5/16-12" 1-11" 21.50mm 22.20mm 57.10mm 41.3mm
7002-16-20 Steel 1" 1-5/16-12" 1-1/4-11" 21.44mm 30.0mm 60.5mm 50.0mm
7002-16-24 Steel 1" 1-5/16-12" 1-1/2-11" 21.40mm 33.00mm 61.00mm 55.0mm
7002-20-12 Steel 1-1/4" 1-5/8-12" 3/4-14" 27.4mm 17.0mm 55.5mm 46.0mm
7002-20-16 Steel 1-1/4" 1-5/8-12" 1-11" 27.38mm 22.2mm 56.00mm 46.0mm
7002-20-20 Steel 1-1/4" 1-5/8-12" 1-1/4-11" 27.38mm 30.00mm 60.80mm 50.00mm
7002-20-24 Steel 1-1/4" 1-5/8-12" 1-1/2-11" 27.40mm 33.00mm 62.50mm 55.00mm
7002-24-16 Steel 1-1/2" 1-7/8-12" 1-11" 33.3mm 22.0mm 63.0mm 50.0mm
7002-24-20 Steel 1-1/2" 1-7/8-12" 1-1/4-11" 30.0mm 30.0mm 63.0mm 50.0mm
7002-24-24 Steel 1-1/2" 1-7/8-12" 1-1/2-11" 33.0mm 33.0mm 67.5mm 55.0mm
7002-24-32 Steel 1-1/2" 1-7/8-12" 2-11" 33.3mm 45.0mm 70.0mm 70.0mm
7002-32-20 Steel 2" 2-1/2-12" 1-1/4-11" 45.0mm 30.0mm 71.5mm 65.0mm
7002-32-24 Steel 2" 2-1/2-12" 1-1/2-11" 45.0mm 33.3mm 74.0mm 65.0mm
7002-32-32 Steel 2" 2-1/2-12" 2-11" 45.2mm 45.2mm 76.0mm 70.0mm

7002-04-04-SS Stainless Steel 1/4" 7/16-20" 1/4-19" 4.37mm 4.70mm 32.00mm 19.00mm
7002-06-04-SS Stainless Steel 3/8" 9/16-18" 1/4-19" 6.00mm 6.30mm 32.80mm 19.00mm
7002-08-08-SS Stainless Steel 1/2" 3/4-16" 1/2-14" 9.93mm 12.70mm 41.00mm 27.00mm
7002-12-12-SS Stainless Steel 3/4" 1-1/16-12" 3/4-14" 15.47mm 18.20mm 52.00mm 32.00mm
Long Adapters:
7002-L-08-06 Steel 1/2" 3/4-16 3/8-19 9.93 9.53 - -
7002-L-08-08 Steel 1/2" 3/4-16 1/2-14 9.93 12.70 - -
