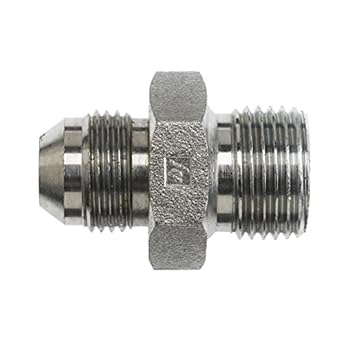

7002-32-24 by Brennan Inc. | -32 Male JIC x -24 Male BSPP | Straight | Steel

7002-32-24 by Brennan Inc. | -32 Male JIC x -24 Male BSPP | Straight | Steel

Save $2.92 Save $2.92
$26.31
$26.31 - $26.31
$26.31
$23.39
$23.39 - $23.39
$23.39

Brennan Inc.
Conversion Adapters: 7002 - Male JIC x Male BSPP Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 7002-32-24 Brennan
Shape (Orientation): Straight
Material(s): Steel
Part Number Material TubeO.D B1JIC 37° B2BSPP B1Drill B2Drill LLength CHex
7002-04-06 Steel 1/4" 7/16-20" 3/8-19" 4.0mm 9.0mm 35.5mm 22.0mm
7002-05-04 Steel 5/16" 1/2-20" 1/4-19" 6.0mm 6.0mm 32.00mm 18.0mm
7002-05-06 Steel 5/16" 1/2-20" 3/8-19" 6.0mm 9.5mm 34.0mm 22.0mm
7002-06-04 Steel 3/8" 9/16-18" 1/4-19" 6.00mm 6.30mm 32.8mm 19.00mm
7002-06-06 Steel 3/8" 9/16-18" 3/8-19" 7.5mm 7.90mm 34.1mm 22.0mm
7002-06-08 Steel 3/8" 9/16-18" 1/2-14" 7.54mm 12.70mm 36.50mm 27.00mm
7002-08-04 Steel 1/2" 3/4-16" 1/4-19" 9.93mm 6.00mm 36.00mm 20.00mm
7002-08-06 Steel 1/2" 3/4-16" 3/8-19" 9.93mm 9.53mm 37.50mm 22.00mm
7002-08-08 Steel 1/2" 3/4-16" 1/2-14" 9.93mm 12.70mm 41.00mm 27.0mm
7002-08-10 Steel 1/2" 3/4-16" 5/8-14" 9.60mm 12.00mm 44.00mm 30.00mm
7002-10-10 Steel 5/8" 7/8-14" 5/8-14" 12.29mm 15.20mm 47.50mm 30.00mm
7002-12-12 Steel 3/4" 1-1/16-12" 3/4-14" 15.47mm 18.20mm 52.00mm 32.00mm
7002-12-16 Steel 3/4" 1-1/16-12" 1-11" 15.5mm 22.0mm 55.5mm 41.0mm
7002-14-12 Steel 7/8" 1-3/16-12" 3/4-14" 17.0mm 17.0mm 53.2mm 32.0mm
7002-16-08 Steel 1" 1-5/16-12" 1/2-14" 24.4mm 11.5mm 50.0mm 35.0mm
7002-16-12 Steel 1" 1-5/16-12" 3/4-14" 21.44mm 18.20mm 53.50mm 35.0mm
7002-16-16 Steel 1" 1-5/16-12" 1-11" 21.50mm 22.20mm 57.10mm 41.3mm
7002-16-20 Steel 1" 1-5/16-12" 1-1/4-11" 21.44mm 30.0mm 60.5mm 50.0mm
7002-16-24 Steel 1" 1-5/16-12" 1-1/2-11" 21.40mm 33.00mm 61.00mm 55.0mm
7002-20-12 Steel 1-1/4" 1-5/8-12" 3/4-14" 27.4mm 17.0mm 55.5mm 46.0mm
7002-20-16 Steel 1-1/4" 1-5/8-12" 1-11" 27.38mm 22.2mm 56.00mm 46.0mm
7002-20-20 Steel 1-1/4" 1-5/8-12" 1-1/4-11" 27.38mm 30.00mm 60.80mm 50.00mm
7002-20-24 Steel 1-1/4" 1-5/8-12" 1-1/2-11" 27.40mm 33.00mm 62.50mm 55.00mm
7002-24-16 Steel 1-1/2" 1-7/8-12" 1-11" 33.3mm 22.0mm 63.0mm 50.0mm
7002-24-20 Steel 1-1/2" 1-7/8-12" 1-1/4-11" 30.0mm 30.0mm 63.0mm 50.0mm
7002-24-24 Steel 1-1/2" 1-7/8-12" 1-1/2-11" 33.0mm 33.0mm 67.5mm 55.0mm
7002-24-32 Steel 1-1/2" 1-7/8-12" 2-11" 33.3mm 45.0mm 70.0mm 70.0mm
7002-32-20 Steel 2" 2-1/2-12" 1-1/4-11" 45.0mm 30.0mm 71.5mm 65.0mm
7002-32-24 Steel 2" 2-1/2-12" 1-1/2-11" 45.0mm 33.3mm 74.0mm 65.0mm
7002-32-32 Steel 2" 2-1/2-12" 2-11" 45.2mm 45.2mm 76.0mm 70.0mm

7002-04-04-SS Stainless Steel 1/4" 7/16-20" 1/4-19" 4.37mm 4.70mm 32.00mm 19.00mm
7002-06-04-SS Stainless Steel 3/8" 9/16-18" 1/4-19" 6.00mm 6.30mm 32.80mm 19.00mm
7002-08-08-SS Stainless Steel 1/2" 3/4-16" 1/2-14" 9.93mm 12.70mm 41.00mm 27.00mm
7002-12-12-SS Stainless Steel 3/4" 1-1/16-12" 3/4-14" 15.47mm 18.20mm 52.00mm 32.00mm
Long Adapters:
7002-L-08-06 Steel 1/2" 3/4-16 3/8-19 9.93 9.53 - -
7002-L-08-08 Steel 1/2" 3/4-16 1/2-14 9.93 12.70 - -
