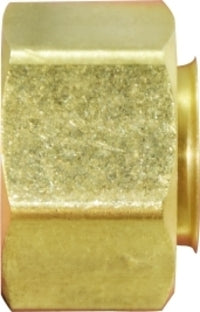

700261-14 Midland Lead Free Compression Fitting - Nut with Captive Sleeve - 7/8" Tube OD - Brass

700261-14 by Midland | Lead Free Compression Fitting | Nut with Captive Sleeve | 7/8" Tube OD | Brass | Replaces: 26016LF

Save $10.87

$27.17

$27.17 - $27.17

$27.17

$16.30

$16.30 - $16.30

$16.30

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Nut with Captive Sleeve

Specifications for Variant SKU: 700261-14 Midland
Shape (Orientation):	No Orientation
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Water, Gasoline, Oil, and Vacuum Lines.	Used With:	Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range:	-40°F to +250°F	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Three piece construction- nut, sleeve (or ferrule) and body. Easy to disassemble, no flaring tool required.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/8-18

Crossover Series:
LF611X6

Part Number	Tube OD
700261-02	1/8"
700261-03	3/16"
700261-04	1/4"
700261-05	5/16"
700261-06	3/8"
700261-08	1/2"
700261-10	5/8"
700261-12	3/4"
700261-14	7/8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
