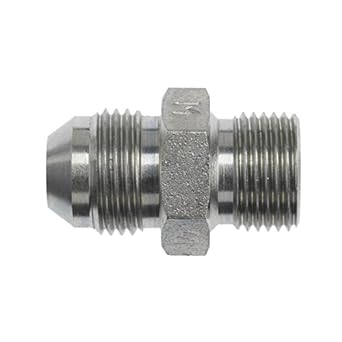

7005-08-S10-18 by Brennan Inc. | -08 Male JIC x 18mm Male Metric Bite Type | Straight | Heavy Port/Tube | Steel

7005-08-S10-18 by Brennan Inc. | -08 Male JIC x 18mm Male Metric Bite Type | Straight | Heavy Port/Tube | Steel

$9.28 - $9.28
$9.28
$11.77
$11.77 - $11.77
$11.77

Brennan Inc.
Conversion Adapters: 7005-S - Male JIC x Male Metric Bite Type Straight (Heavy Port/Tube)
Specifications for Variant SKU: 7005-08-S10-18 Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Male JIC, 18mm Male Metric
Material(s): Steel
Part Number Material B1 TubeOD B2 TubeOD B1JIC 37° B2 B1Drill B2Drill LLength CHex
7005-04-S06-14 Steel 1/4" 06mm 7/16-20" M14X1.5 4.00mm 4.00mm 32.50mm 14.00mm
7005-04-S08-16 Steel 1/4" 08mm 7/16-20" M16X1.5 3.80mm 3.80mm 34.00mm 17.00mm
7005-06-S08-16 Steel 3/8" 08mm 9/16-18" M16X1.5 5.00mm 5.00mm 34.10mm 17.00mm
7005-06-S10-18 Steel 3/8" 10mm 9/16-18" M18X1.5 7.00mm 7.00mm 34.00mm 19.00mm
7005-06-S12-20 Steel 3/8" 12mm 9/16-18" M20X1.5 7.50mm 7.50mm 34.00mm 22.00mm
7005-08-S10-18 Steel 1/2" 10mm 3/4-16" M18X1.5 9.90mm 7.00mm 38.50mm 22.00mm
7005-08-S12-20 Steel 1/2" 12mm 3/4-16" M20X1.5 8.00mm 8.00mm 38.50mm 22.00mm
7005-08-S14-22 Steel 1/2" 14mm 3/4-16" M22X1.5 9.90mm 9.90mm 42.20mm 27.00mm
7005-08-S16-24 Steel 1/2" 16mm 3/4-16" M24X1.5 9.60mm 12.0mm 41.00mm 27.00mm
7005-10-S12-20 Steel 5/8" 12mm 7/8-14" M20X1.5 12.30mm 7.00mm 42.30mm 24.00mm
7005-10-S16-24 Steel 5/8" 16mm 7/8-14" M24X1.5 12.00mm 12.00mm 43.30mm 27.00mm
7005-12-S16-24 Steel 3/4" 16mm 1-1/16-12" M24X1.5 15.50mm 12.00mm 47.00mm 32.00mm
7005-12-S20-30 Steel 3/4" 20mm 1-1/16-12" M30X2 15.50mm 15.50mm 49.90mm 32.00mm
7005-12-S25-36 Steel 3/4" 25mm 1-1/16-12" M36X2 15.50mm 20.00mm 53.90mm 38.00mm
7005-16-S30-42 Steel 1" 30mm 1-5/16-12" M42X2 21.40mm 21.40mm 57.10mm 46.00mm
7005-20-S38-52 Steel 1-1/4" 38mm 1-5/8-12" M52X2 27.40mm 32.00mm 62.30mm 55.00mm
7005-24-S38-52 Steel 1-1/2" 38mm 1-7/8-12" M52X2 33.30mm 32.00mm 65.50mm 55.00mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
