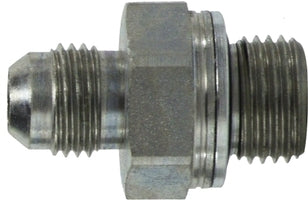

7005616 (7005-6-16) Midland Hydraulic Metric Male Connector - 9/16-18 Male JIC 37° Flare x 16x1.5 Male Metric - Steel

7005616 by Midland | Hydraulic Metric Connector | 9/16-18 Male JIC 37° Flare x 16x1.5 Male Metric | Steel

Save $1.03 Save $1.03
$6.58
$6.58 - $6.58
$6.58
$5.55
$5.55 - $5.55
$5.55

Midland Industries
Hydraulic Metric Adapters: Metric Male Connector - Steel

Inventory @ Manufacturers Warehouse: 23 Units
Specifications for Variant SKU: 7005616 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Male JIC, 16mm Male Metric
Material(s): Steel
Note:
  • Port-seal crush washer and O-ring included.
Technical Info:
Crossover Series:
7400 30J (R) 7011
Part Number Male JIC 37° Flare Thread
(1)		 Male Metric Thread
(2)
7005410
(7005-4-10) 		7/16-20 10x1.0
7005412
(7005-4-12) 		7/16-20 12x1.5
7005414
(7005-4-14) 		7/16-20 14x1.5
7005518
(7005-5-18) 		7/16-20 18x1.5
7005512
(7005-5-12) 		1/2-20 12x1.5
7005514
(7005-5-14) 		1/2-20 14x1.5
7005614
(7005-6-14) 		9/16-18 14x1.5
7005616
(7005-6-16) 		9/16-18 16x1.5
7005618
(7005-6-18) 		9/16-18 18x1.5
7005816
(7005-8-16) 		3/4-16 16x1.5
7005818
(7005-8-18) 		3/4-16 18x1.5
7005822
(7005-8-22) 		3/4-16 22x1.5
70051018
(7005-10-18) 		7/8-14 18x1.5
70051020
(7005-10-20) 		7/8-14 20x1.5
70051022
(7005-10-22) 		7/8-14 22x1.5
70051222
(7005-12-22) 		1-1/16-12 22x1.5
70051227
(7005-12-27) 		1-1/16-12 27x2
