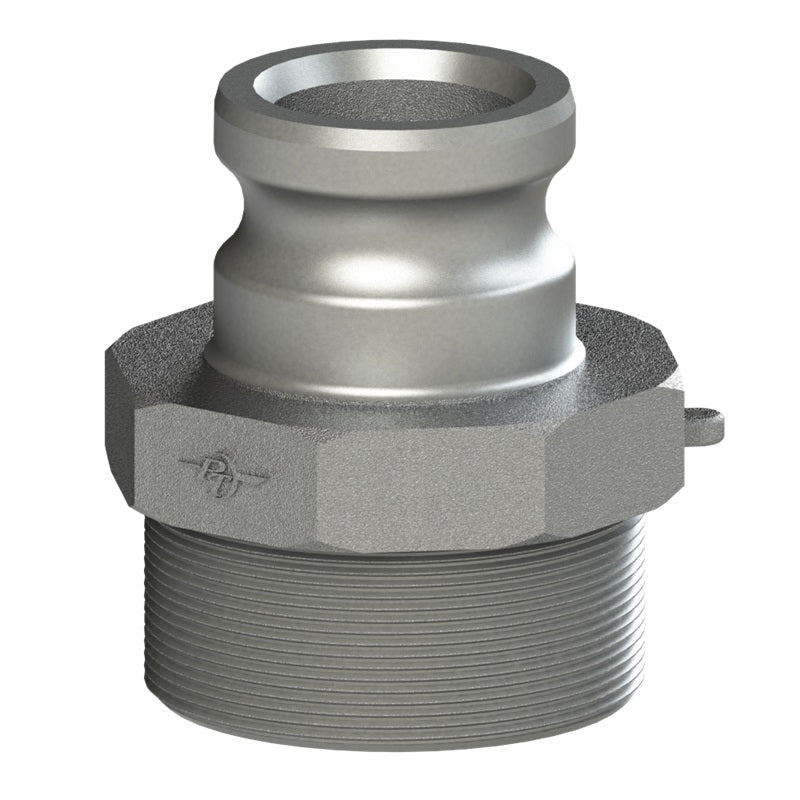

70164030 (40X30F) by PT-Coupling | Reducing Cam & Groove Adapter | Type F | 4" Adapter x 3" Male NPT | Hard Coat Aluminum

Name: 70164030 (40X30F) by PT-Coupling | Reducing Cam & Groove Adapter | Type F | 4" Adapter x 3" Male NPT | Hard Coat Aluminum
Brand: PT-Coupling
SKU: 70164030 PT-Coupling
Price: 112.35 USD
Availability: InStock

Save $14.04

$126.39

$126.39 - $126.39

$126.39

$112.35

$112.35 - $112.35

$112.35

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 70164030 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	4in Male Cam & Groove, 3in Male NPT
Material(s):	Hard Coat Aluminum

Features & Applications:
This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance. Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products. Made in the USA

Part Name	Item #	Adapter Size	Male NPT Thread	Max. Allowable Working Press. (PSI)*
15X20F	70161520	1-1/2"	2"	250 PSI
20X15F	70162015	2"	1-1/2"	200 PSI
20X30F	70162030	2"	3"	200 PSI
30X15F	70163015	3"	1-1/2"	200 PSI
30X20F	70163020	3"	2"	200 PSI
30X40F	70163040	3"	4"	150 PSI
40X30F	70164030	4"	3"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
