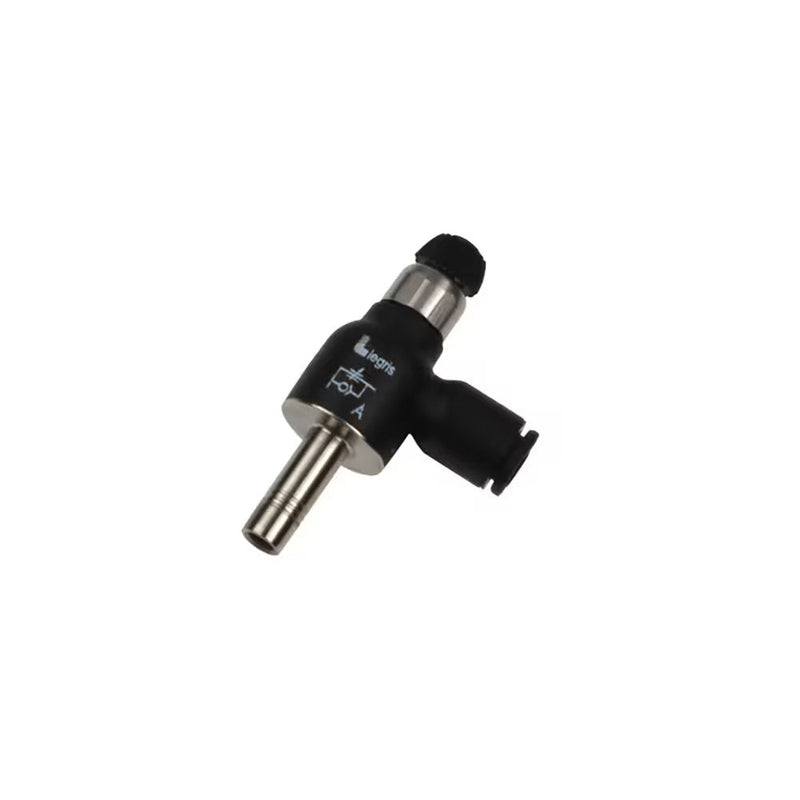

7030 06 00 by Parker | Legris Compact Plug-In Flow Regulator | 6 mm Tube Size | 58 mm Max Length | 90° Elbow | Polymer

7030 06 00 by Parker | Legris Compact Plug-In Flow Regulator | 6mm Tube Size | 58mm Max Length | 90° Elbow | Polymer | Pack of 10

Save $119.20 Save $119.20
$298.00
$298.00 - $298.00
$298.00
$178.80
$178.80 - $178.80
$178.80

by Parker Hannifin
Flow Control Regulators:7030 Compact Plug-In Flow Regulator, Exhaust

Package Quantity: 10 Units

Specifications for Variant SKU: 7030 06 00 Parker | 10 |
Series: 7030 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD F G H (max) H (min) H1 H2 L Kg
7030 06 00 6 mm 10 mm 16 mm 41 mm 35 mm 14 mm 17 mm 22 mm .013 Kg
7030 08 00 8 mm 14 mm 19 mm 46.5 mm 39.5 mm 16 mm 21.5 mm 28 mm .022 Kg
7030 12 00 12 mm 17 mm 23 mm 51 mm 43 mm 17 mm 27 mm 35 mm .044 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
