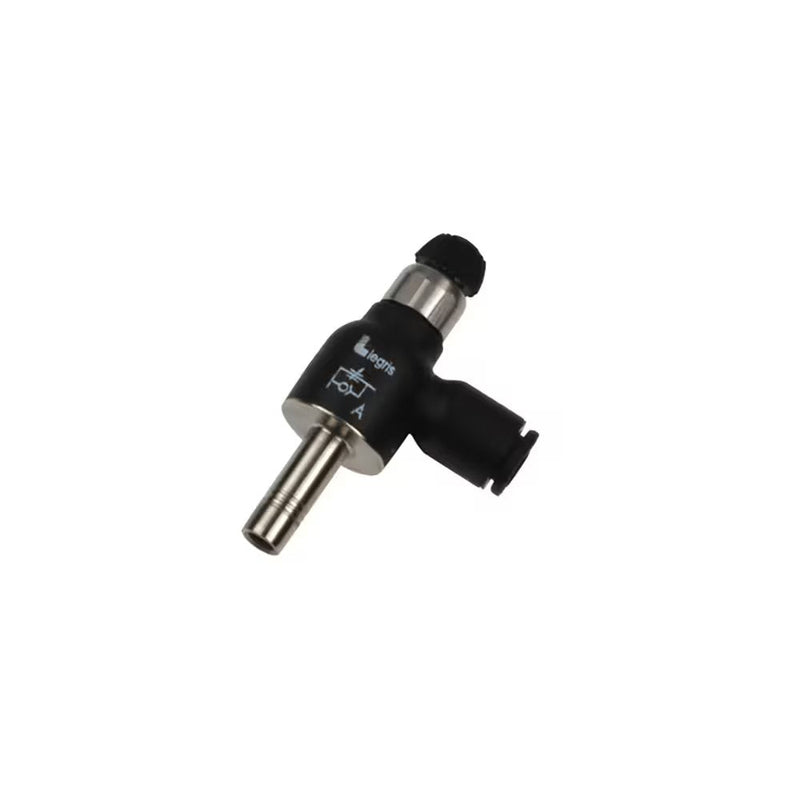

7030 12 00 by Parker | Legris Compact Plug-In Flow Regulator | 12 mm Tube Size | 78 mm Max Length | 90° Elbow | Polymer

7030 12 00 by Parker | Legris Compact Plug-In Flow Regulator | 12mm Tube Size | 78mm Max Length | 90° Elbow | Polymer | Pack of 10

Save $271.65 Save $271.65
$679.12
$679.12 - $679.12
$679.12
$407.47
$407.47 - $407.47
$407.47

by Parker Hannifin
Flow Control Regulators:7030 Compact Plug-In Flow Regulator, Exhaust

Package Quantity: 10 Units

Specifications for Variant SKU: 7030 12 00 Parker | 10 |
Series: 7030 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD F G H (max) H (min) H1 H2 L Kg
7030 06 00 6 mm 10 mm 16 mm 41 mm 35 mm 14 mm 17 mm 22 mm .013 Kg
7030 08 00 8 mm 14 mm 19 mm 46.5 mm 39.5 mm 16 mm 21.5 mm 28 mm .022 Kg
7030 12 00 12 mm 17 mm 23 mm 51 mm 43 mm 17 mm 27 mm 35 mm .044 Kg
