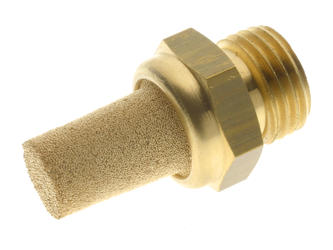

7030-3/4 AIGNEP | Mufflers and Silencers Series | 3/4" BSPP Sintered Bronze Muffler | 50 Micron | 145 psi | 14 to 176 F
7030-3/4 by AIGNEP | Mufflers and Silencers Series | 3/4" BSPP Sintered Muffler | 50 Micron | 145 psi | 14 to 176 F | Bronze
7030-3/4 AIGNEP | Mufflers and Silencers Series | 3/4" BSPP Sintered Bronze Muffler | 50 Micron | 145 psi | 14 to 176 F

7030-3/4 by AIGNEP | Mufflers and Silencers Series | 3/4" BSPP Sintered Muffler | 50 Micron | 145 psi | 14 to 176 F | Bronze

Save $8.27 Save $8.27
$24.87
$24.87 - $24.87
$24.87
$16.60
$16.60 - $16.60
$16.60
Specifications for Variant SKU: 7030-3/4 AIGNEP
Series: Mufflers and Silencers Series

BSPP Sintered Bronze Muffler


Part Number A F H CH °C Min °C Max Bar Filtration
Threshold
7030-M5 M5 4mm 17mm 8mm -10 +80 10 50 µm
7030-1/8" 1/8" 6mm 29mm 13mm -10 +80 10 50 µm
7030-1/4" 1/4" 7mm 32mm 16mm -10 +80 10 50 µm
7030-3/8" 3/8" 8mm 40mm 19mm -10 +80 10 50 µm
7030-1/2" 1/2" 9mm 45mm 24mm -10 +80 10 50 µm
7030-3/4" 3/4" 10mm 56mm 30mm -10 +80 10 50 µm
7030-1" 1" 12mm 66mm 36mm -10 +80 10 50 µm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
