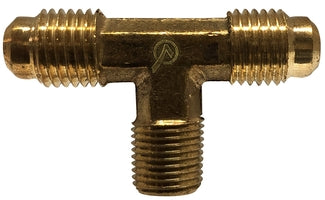

704045-0606 Midland Lead Free 45° SAE Flare Fitting - Male Branch Tee - 3/8" Male Flare x 3/8" Male Flare x 3/8" Male NPTF - Brass

704045-0606 by Midland | Lead Free 45° SAE Flare Fitting | Branch | 3/8" Male Flare x 3/8" Male Flare x 3/8" Male NPTF | Tee | Brass | Replaces: 10211LF

Save $5.71 Save $5.71
$12.84
$12.84 - $12.84
$12.84
$7.13
$7.13 - $7.13
$7.13

Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Male Branch Tee

Inventory @ Manufacturers Warehouse: 573 Units
Specifications for Variant SKU: 704045-0606 Midland
Shape (Orientation): Tee
Ends Configuration: 3/8in Male SAE 45 Flare, 3/8in Male SAE 45 Flare, 3/8in Male NPTF, Some Ends Match
Material(s): Lead Free Brass
Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free

SPECIFICATIONS

Applications: Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines Used With: Copper, Brass, Aluminum, or Steel Tubing
Temperature Range: -40°F to +250°F Conformance: Meet functional requirements for SAE, ASME and ASA codes for pressure piping.
Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)
Features:
  • Two pieces construction - nut and body.
  • Resists mechanical pullout.
  • Easy to disassemble and can be reassembled many times, with no effect on the seal.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 11/16-14 1-1/4-12 1 3/8-12
Part Number Male Flare x Male Flare x Male NPTF
704045-0402 1/4" x 1/4" x 1/8"
704045-0406 1/4" x 1/4" x 3/8"
704045-0604 3/8" x 3/8" x 1/4"
704045-0606 3/8" x 3/8" x 3/8"
704045-0608 3/8" x 3/8" x 1/2"
704045-0806 1/2" x 1/2" x 3/8"
704045-0808 1/2" x 1/2" x 1/2"
704045-1008 5/8" x 5/8" x 1/2"
