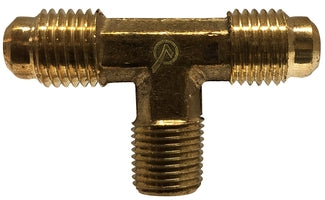

704045-1008 Midland Lead Free 45° SAE Flare Fitting - Male Branch Tee - 5/8" Male Flare x 5/8" Male Flare x 1/2" Male NPTF - Brass

704045-1008 by Midland | Lead Free 45° SAE Flare Fitting | Branch | 5/8" Male Flare x 5/8" Male Flare x 1/2" Male NPTF | Tee | Brass | Replaces: 10218LF

Save $1.43

$9.19

$9.19 - $9.19

$9.19

$7.76

$7.76 - $7.76

$7.76

Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Male Branch Tee

Inventory @ Manufacturers Warehouse: 1164 Units

Quantity

Specifications for Variant SKU: 704045-1008 Midland
Shape (Orientation):	Tee
Ends Configuration:	5/8in Male SAE 45 Flare, 5/8in Male SAE 45 Flare, 1/2in Male NPTF, Some Ends Match
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines	Used With:	Copper, Brass, Aluminum, or Steel Tubing
Temperature Range:	-40°F to +250°F	Conformance:	Meet functional requirements for SAE, ASME and ASA codes for pressure piping. Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Two pieces construction - nut and body. Resists mechanical pullout. Easy to disassemble and can be reassembled many times, with no effect on the seal.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"	1"
Thread Size	5/16-24	3/8-24	7/16-20	1/2-20	5/8-18	11/16-16	3/4-16	7/8-14	11/16-14	1-1/4-12	1 3/8-12

Part Number	Male Flare x Male Flare x Male NPTF
704045-0402	1/4" x 1/4" x 1/8"
704045-0406	1/4" x 1/4" x 3/8"
704045-0604	3/8" x 3/8" x 1/4"
704045-0606	3/8" x 3/8" x 3/8"
704045-0608	3/8" x 3/8" x 1/2"
704045-0806	1/2" x 1/2" x 3/8"
704045-0808	1/2" x 1/2" x 1/2"
704045-1008	5/8" x 5/8" x 1/2"
