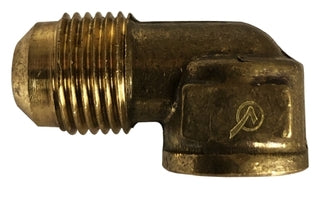

704050-1212 Midland Lead Free 45° SAE Flare Fitting - Female 90° Elbow - 3/4" Male Flare x 3/4" Female Pipe - Brass

704050-1212 by Midland | Lead Free 45° SAE Flare Fitting | 3/4" Male Flare x 3/4" Female Pipe | 90° Elbow | Brass | Replaces: 10331LF

Save $3.14 Save $3.14
$28.23
$28.23 - $28.23
$28.23
$25.09
$25.09 - $25.09
$25.09

Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Female 90° Elbow

Inventory @ Manufacturers Warehouse: 11 Units
Specifications for Variant SKU: 704050-1212 Midland
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Male SAE 45 Flare, 3/4in Female NPT
Material(s): Lead Free Brass
Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free

SPECIFICATIONS

Applications: Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines Used With: Copper, Brass, Aluminum, or Steel Tubing
Temperature Range: -40°F to +250°F Conformance: Meet functional requirements for SAE, ASME and ASA codes for pressure piping.
Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)
Features:
  • Two pieces construction - nut and body.
  • Resists mechanical pullout.
  • Easy to disassemble and can be reassembled many times, with no effect on the seal.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 11/16-14 1-1/4-12 1 3/8-12
Part Number Male Flare x Female Pipe
704050-0402 1/4" x 1/8"
704050-0404 1/4" x 1/4"
704050-0604 3/8" x 1/4"
704050-0606 3/8" x 3/8"
704050-0608 3/8" x 1/2"
704050-0612 3/8" x 3/4"
704050-0806 1/2" x 3/8"
704050-0808 1/2" x 1/2"
704050-0812 1/2" x 3/4"
704050-1008 5/8" x 1/2"
704050-1012 5/8" x 3/4"
704050-1212 3/4" x 3/4"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
