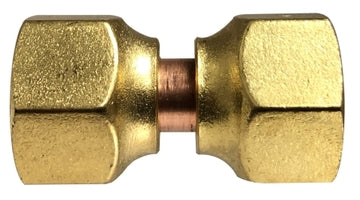

704070-04 Midland Lead Free 45° SAE Flare Fitting - Female Forged Swivel - 1/4" Female Flare UNF x 1/4" Female Flare UNF - Brass

704070-04 by Midland | Lead Free 45° SAE Flare Fitting | Forged Swivel | 1/4" Female Flare UNF x 1/4" Female Flare UNF | Brass | Replaces: 10481LF

Save $3.11

$7.78

$7.78 - $7.78

$7.78

$4.67

$4.67 - $4.67

$4.67

Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Female Forged Swivel

Inventory @ Manufacturers Warehouse: 2484 Units

Specifications for Variant SKU: 704070-04 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female SAE 45 Flare, 1/4in Female SAE 45 Flare, Some Ends Match
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines	Used With:	Copper, Brass, Aluminum, or Steel Tubing
Temperature Range:	-40°F to +250°F	Conformance:	Meet functional requirements for SAE, ASME and ASA codes for pressure piping. Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Two pieces construction - nut and body. Resists mechanical pullout. Easy to disassemble and can be reassembled many times, with no effect on the seal.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"	1"
Thread Size	5/16-24	3/8-24	7/16-20	1/2-20	5/8-18	11/16-16	3/4-16	7/8-14	11/16-14	1-1/4-12	1 3/8-12

Crossover Series:
LF700

Part Number	Female Flare UNF x Female Flare UNF
704070-04	1/4" x 1/4"
704070-05	5/16" x 5/16"
704070-06	3/8" x 3/8"
704070-08	1/2" x 1/2"
704070-10	5/8" x 5/8"
704075-0604	3/8" x 1/4"
704075-0806	1/2" x 3/8"
