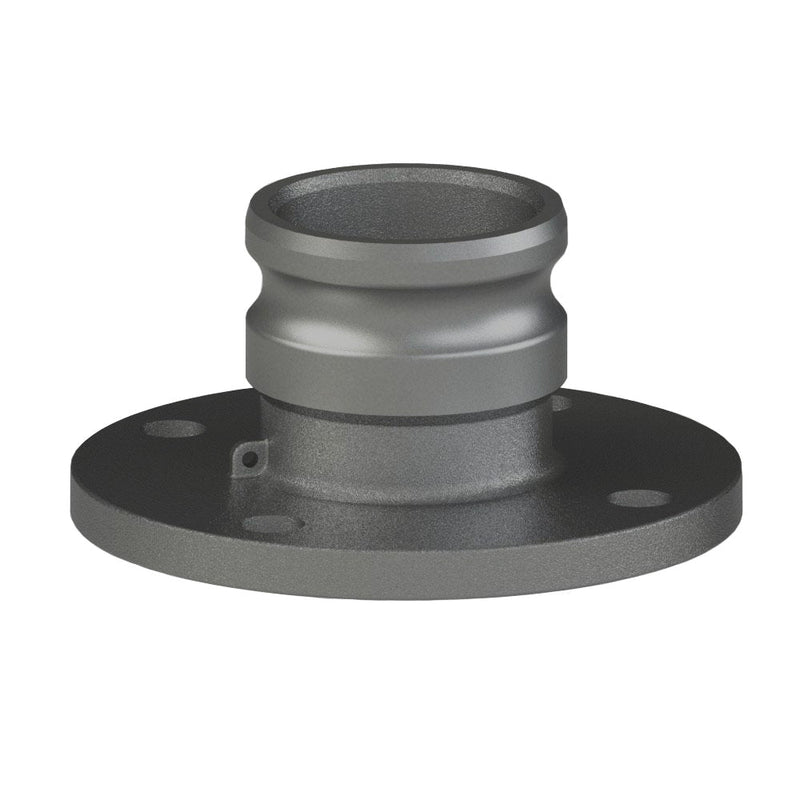

70524000 (PF40A) by PT-Coupling | Cam & Groove Adapter | Type PFA | 4" Adapter x 4" 150# Pipe Flange | Hard Coat Aluminum

70524000 (PF40A) by PT-Coupling | Cam & Groove Adapter | Type PFA | 4" Adapter x 4" 150# Pipe Flange | Hard Coat Aluminum

Save $100.06 Save $100.06
$269.55
$269.55 - $269.55
$269.55
$169.49
$169.49 - $169.49
$169.49

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 70524000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 4in Male Cam & Groove, 4in 150# Flange
Material(s): Hard Coat Aluminum
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150.
  • Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges.
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Flange
Size		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*		 Weight
PF20A 70522000 2" 2" 3.50" 1.72" 6.00" 0.75" 4 4.75" 250 PSI 2.135 lbs.
PF30A 70523000 3" 3" 3.69" 2.78" 7.50" 0.75" 4 6.00" 200 PSI 3.205 lbs.
PF40A 70524000 4" 4" 4.00" 3.78" 9.00" 0.75" 8 7.50" 150 PSI -
PF60A 70526000 6" 6" 4.50" 5.56" 11.00" 0.88" 8 9.50 75 PSI 8.385 lbs.
PF80A 70528000 8" 8" 5.38" 7.80" 13.5" 0.88" 8 11.75" 50 PSI 11.89 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
