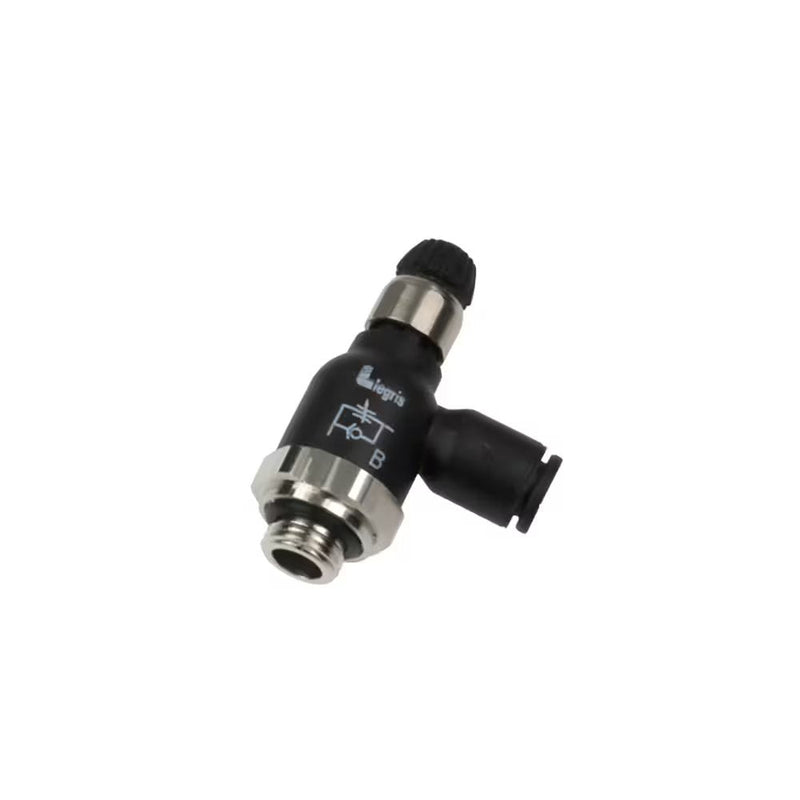

7061 10 13 by Parker | Legris Compact Flow Regulator | 10mm Tube Size x 1/4" Male BSPP Thread | 23mm Hex | 90° Elbow | Polymer | Pack of 5

Save $108.58

$271.45

$271.45 - $271.45

$271.45

$162.87

$162.87 - $162.87

$162.87

by Parker Hannifin
Flow Control Regulators:7061 Compact Flow Regulator Supply, Male BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 7061 10 13 Parker \| 5 \|
Series:	7061 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	E	F	F1	H	H (max)	H1	L	L1	ØT	Kg
7061 04 10	4 mm	1/8"	5 mm	10 mm	16 mm	38 mm	44 mm	16 mm	22 mm	9 mm	10 mm	.020 Kg
7061 06 10	6 mm	1/8"	5 mm	10 mm	16 mm	38 mm	44 mm	16 mm	22 mm	9 mm	10 mm	.020 Kg
7061 06 13	6 mm	1/4"	5.5 mm	10 mm	16 mm	36.5 mm	42.5 mm	15 mm	22 mm	9 mm	10 mm	.021 Kg
7061 08 10	8 mm	1/8"	4.5 mm	14 mm	19 mm	41.5 mm	48 mm	18 mm	28 mm	10.5 mm	14 mm	.033 Kg
7061 08 13	8 mm	1/4"	5.5 mm	14 mm	19 mm	41.5 mm	48 mm	18.5 mm	28 mm	10.5 mm	14 mm	.034 Kg
7061 08 17	8 mm	3/8"	5.5 mm	14 mm	23 mm	41.5 mm	48 mm	17 mm	28 mm	11 mm	14 mm	.033 Kg
7061 10 13	10 mm	1/4"	5.5 mm	17 mm	23 mm	45.5 mm	53.5 mm	20 mm	31.5 mm	12.5 mm	17 mm	.053 Kg
7061 10 17	10 mm	3/8"	5.5 mm	17 mm	23 mm	45.5 mm	54 mm	20 mm	31.5 mm	12.5 mm	17 mm	.054 Kg
7061 12 21	12 mm	1/2"	7.5 mm	17 mm	24 mm	45.5 mm	54 mm	20 mm	35 mm	13 mm	17 mm	.060 Kg
