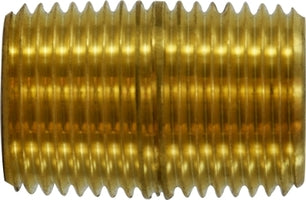

706112-06 Midland Lead Free Pipe Fitting - Close Nipple - 3/8" Male Pipe - Brass

706112-06 by Midland | Lead Free Pipe Fitting | Close Nipple | 3/8" Male Pipe | Brass | Replaces: 28133LF / 28-133LF

Save $1.55

$3.88

$3.88 - $3.88

$3.88

$2.33

$2.33 - $2.33

$2.33

Midland Industries
Lead Free Brass Fitting - Pipe Thread - Close Nipple

Inventory @ Manufacturers Warehouse: 2506 Units

Specifications for Variant SKU: 706112-06 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPT, 3/8in Male NPT, Some Ends Match
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Used in low to medium pressure applications.	Used With:	Brass or Steel Pipe
SAE Rating:	N/A	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Vibration:	Fair Resistance.	Lead Free:	Yes. Lead Free Info (PDF)

Nominal Pipe Size	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Thread Size	1/8-27"	1/4-18"	3/8-18"	1/2-14"	3/4-14"	1-11-1/2"
Approx. Diameter (inches)	3/8"	1/2"	5/8"	3/4"	1"	1-3/8"

Features:
One piece construction. All pipe threads are "American Standard Taper Pipe Threads". Teflon tape or pipe sealant is recommended. Pipe threads should be tightened 2-1/2 turns past finger tight.

Crossover Series:
LF112

Part Number	Male Pipe x Male Pipe
706112-02	1/8"
706112-04	1/4"
706112-06	3/8"
706112-08	1/2"
706112-12	3/4"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
