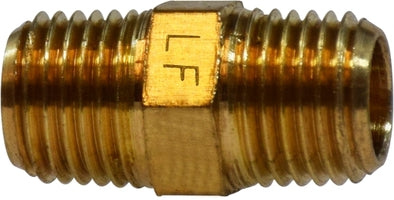

706122-04 Midland Lead Free Pipe Fitting - Hex Nipple - 1/4" Male Pipe - Brass

706122-04 by Midland | Lead Free Pipe Fitting | Hex Nipple | 1/4" Male Pipe | Brass | Replaces: 28212LF / 28-212LF

Save $1.26

$3.15

$3.15 - $3.15

$3.15

$1.89

$1.89 - $1.89

$1.89

Midland Industries
Lead Free Brass Fitting - Pipe Thread - Hex Nipple

Inventory @ Manufacturers Warehouse: 3547 Units

Specifications for Variant SKU: 706122-04 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Used in low to medium pressure applications.	Used With:	Brass or Steel Pipe
SAE Rating:	N/A	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Vibration:	Fair Resistance.	Lead Free:	Yes. Lead Free Info (PDF)

Nominal Pipe Size	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Thread Size	1/8-27"	1/4-18"	3/8-18"	1/2-14"	3/4-14"	1-11-1/2"
Approx. Diameter (inches)	3/8"	1/2"	5/8"	3/4"	1"	1-3/8"

Features:
One piece construction. All pipe threads are "American Standard Taper Pipe Threads". Teflon tape or pipe sealant is recommended. Pipe threads should be tightened 2-1/2 turns past finger tight.

Crossover Series:
LF23325X	LF122

Part Number	Male Pipe x Male Pipe
706122-02	1/8" x 1/8"
706122-04	1/4" x 1/4"
706122-06	3/8" x 3/8"
706122-08	1/2" x 1/2"
706122-12	3/4" x 3/4"
706122-16	1" x 1"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
