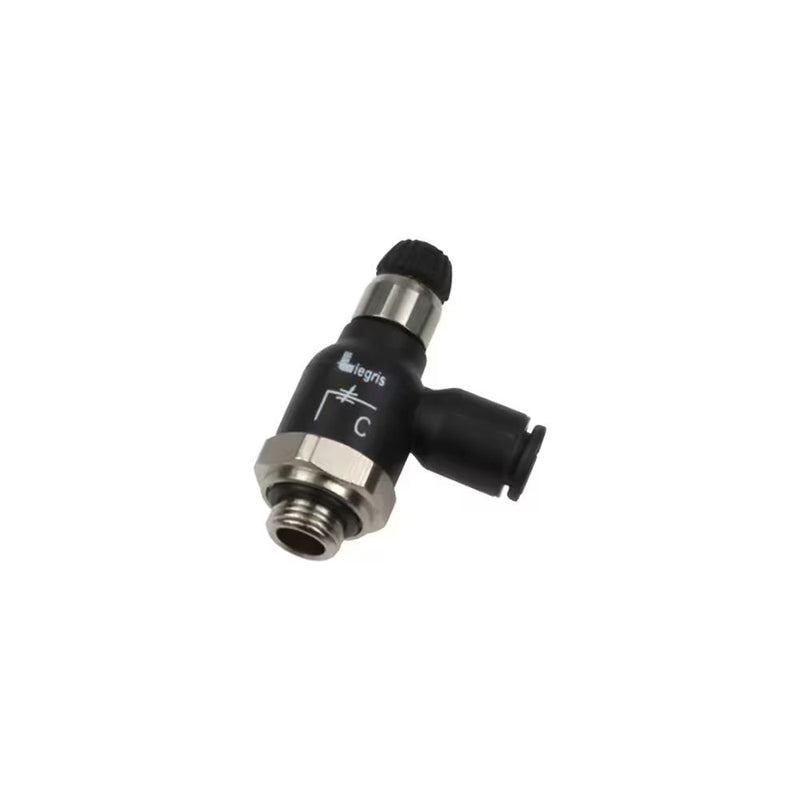

7062 06 13 by Parker | Legris Bi-Directional Compact Flow Regulator | 6 mm Tube Size x 1/4" Male BSPP Thread | 16 mm Hex | 90° Elbow | Polymer

7062 06 13 by Parker | Legris Bi-Directional Compact Flow Regulator | 6mm Tube Size x 1/4" Male BSPP Thread | 16mm Hex | 90° Elbow | Polymer | Pack of 10

Save $130.22 Save $130.22
$325.55
$325.55 - $325.55
$325.55
$195.33
$195.33 - $195.33
$195.33

by Parker Hannifin
Flow Control Regulators:7062 Bi-Directional Compact Flow Regulator, Male BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7062 06 13 Parker | 10 |
Series: 7061 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:

    Productivity:

  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed

    • Accuracy:

  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow

    • Ergonomics:

  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C E F F1 H H (max) H1 L L1 ØT Kg
7062 04 10 4 mm 1/8" 5 mm 10 mm 16 mm 38 mm 44 mm 16 mm 22 mm 9 mm 10 mm .025 Kg
7062 06 10 6 mm 1/8" 5 mm 10 mm 16 mm 38 mm 44 mm 16 mm 22 mm 9 mm 10 mm .025 Kg
7062 06 13 6 mm 1/4" 5.5 mm 10 mm 16 mm 36.5 mm 42.5 mm 15 mm 22 mm 9 mm 10 mm .025 Kg
7062 08 10 8 mm 1/8" 4.5 mm 14 mm 19 mm 41.5 mm 48 mm 18 mm 28 mm 10.5 mm 14 mm .043 Kg
7062 08 13 8 mm 1/4" 5.5 mm 14 mm 19 mm 41.5 mm 48 mm 18.5 mm 28 mm 10.5 mm 14 mm .046 Kg
7062 08 17 8 mm 3/8" 5.5 mm 14 mm 19 mm 41.5 mm 48 mm 17 mm 28 mm 11 mm 14 mm .042 Kg
