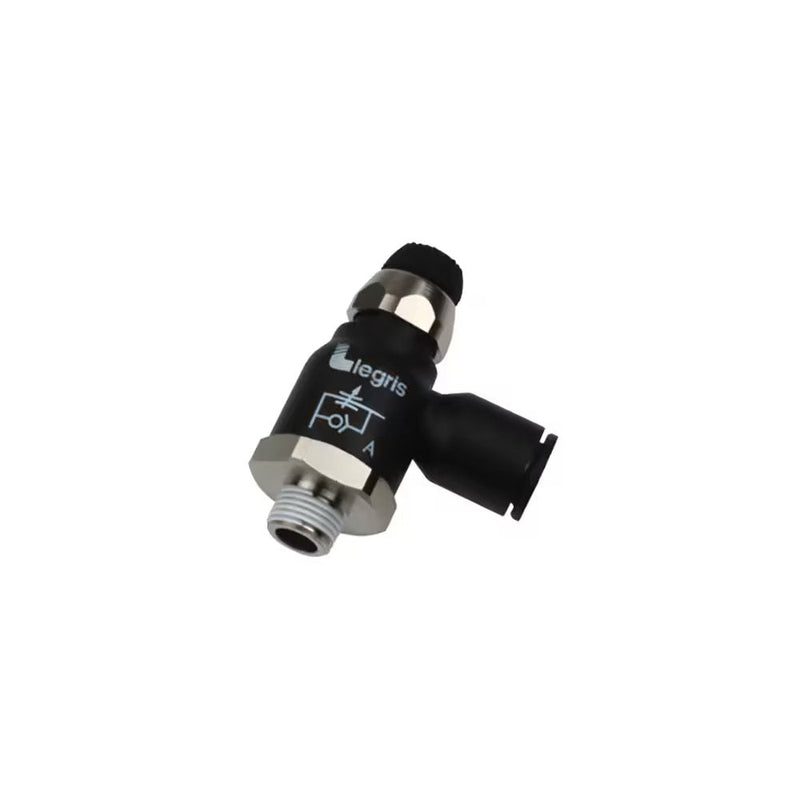

7065 04 11 by Parker | Legris Compact Flow Control - Meter Out | 5/32" Push-to-Connect x 1/8" Male NPT Thread | .63" Hex (F) | .39" (F1) | 90° Elbow | Nylon

7065 04 11 by Parker | Legris Compact Flow Control - Meter Out | 5/32" Push-to-Connect x 1/8" Male NPT Thread | .63" Hex (F) | .39" (F1) | 90° Elbow | Nylon | Pack of 10

Save $150.49 Save $150.49
$376.22
$376.22 - $376.22
$376.22
$225.73
$225.73 - $225.73
$225.73

by Parker Hannifin
Compact Flow Controls:7065 - compact meter out flow control tube to NPT or BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: 7065 04 11 Parker | 10 |
Series: 7065 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass threads
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1-10 bar)
Temperature Range
  • 32° to 158° F (0° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD NPT (C) F F1 G H (min) H (max) J L L1 L2 Oz
7065 04 11 5/32" 1/8" .63" .39" .43" 1.44" 1.67" .69" .85" .59" .79" .79 Oz
7065 04 14 5/32" 1/4" .63" .39" .43" 1.44" 1.67" .69" .85" .59" .79" .79 Oz
7065 56 11 1/4" 1/8" .63" .39" .43" 1.44" 1.67" .69" .85" .59" .79" .79 Oz
7065 56 14 1/4" 1/4" .63" .39" .43" 1.44" 1.67" .69" .85" .59" .79" .97 Oz
7065 60 14 3/8" 1/4" .91" .67" .63" 1.71" 2.03" .98" 1.22" .71" 1.02" 2.15 Oz
7065 60 18 3/8" 3/8" .91" .67" .63" 1.71" 2.03" .98" 1.22" .71" 1.02" 2.22 Oz
7065 60 22 3/8" 1/2" .91" .67" .63" 1.71" 2.03" .98" 1.22" .71" 1.02" 2.22 Oz
7065 62 22 1/8" 1/2" .91" .67" .63" 1.71" 2.03" .98" 1.22" .71" 1.02" 2.22 Oz
