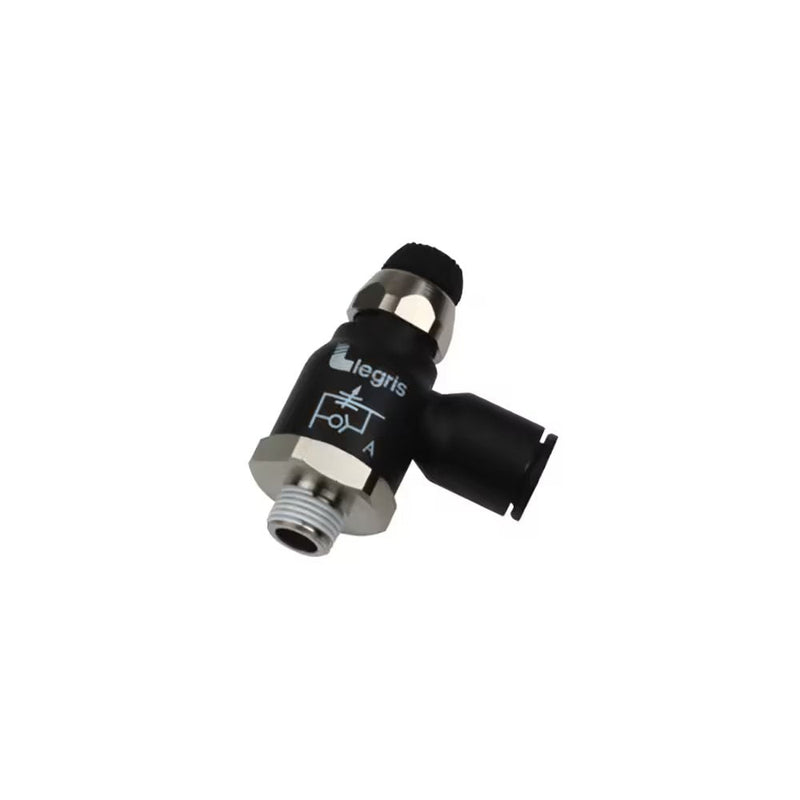

7065 10 21 by Parker | Legris Compact Flow Regulator | 10mm Tube Size x 1/2" Male BSPT Thread | 17mm Hex | 90° Elbow | Polymer | Pack of 5

Save $175.20

$438.00

$438.00 - $438.00

$438.00

$262.80

$262.80 - $262.80

$262.80

by Parker Hannifin
Flow Control Regulators:7065 Compact Flow Regulator Exhaust, Male BSPT Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 7065 10 21 Parker \| 5 \|
Series:	7065 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	F	F1	H (max)	H (min)	H1	L	L1	ØT	Kg
7065 06 10	6 mm	1/8"	10 mm	16 mm	42.5 mm	36.5 mm	15 mm	22 mm	8 mm	10 mm	.021 Kg
7065 08 10	8 mm	1/8"	14 mm	19 mm	45 mm	40 mm	16.5 mm	28 mm	10.5 mm	14 mm	.034 Kg
7065 08 13	8 mm	1/4"	14 mm	19 mm	45 mm	40 mm	16.5 mm	28 mm	10.5 mm	14 mm	.036 Kg
7065 10 13	10 mm	1/4"	17 mm	23 mm	51.5 mm	43.5 mm	18 mm	31.5 mm	12.5 mm	17 mm	.053 Kg
7065 10 17	10 mm	3/8"	17 mm	23 mm	51.5 mm	43.5 mm	18 mm	31.5 mm	12.5 mm	17 mm	.055 Kg
7065 10 21	10 mm	1/4"	17 mm	23 mm	51.5 mm	43.5 mm	18 mm	31.5 mm	12.5 mm	17 mm	.059 Kg
7065 12 13	12 mm	1/4"	17 mm	23 mm	51.5 mm	43.5 mm	18 mm	35 mm	12.5 mm	17 mm	.056 Kg
7065 12 17	12 mm	3/8"	17 mm	23 mm	51.5 mm	43.5 mm	18 mm	35 mm	12.5 mm	17 mm	.059 Kg
7065 12 21	12 mm	1/4"	17 mm	23 mm	51.5 mm	43.5 mm	18 mm	35 mm	12.5 mm	17 mm	.064 Kg

Pre-coated thread

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
