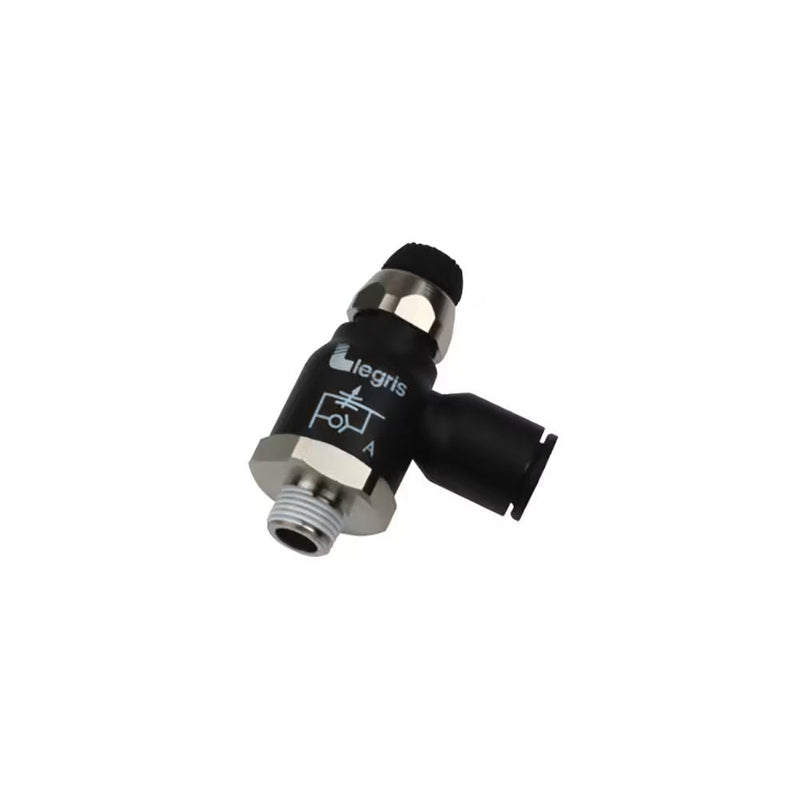

7066 60 14 by Parker | Legris Compact Flow Control - Meter In | 3/8" Push-to-Connect x 1/4" Male NPT Thread | .91" Hex (F) | .67" (F1) | 90° Elbow | Nylon

7066 60 14 by Parker | Legris Compact Flow Control - Meter In | 3/8" Push-to-Connect x 1/4" Male NPT Thread | .91" Hex (F) | .67" (F1) | 90° Elbow | Nylon | Pack of 5

Save $144.13 Save $144.13
$360.33
$360.33 - $360.33
$360.33
$216.20
$216.20 - $216.20
$216.20

by Parker Hannifin
Compact Flow Controls:7066 - compact meter in flow control tube to NPT or BSPT

Package Quantity: 5 Units

Specifications for Variant SKU: 7066 60 14 Parker | 5 |
Series: 7065 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass threads
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1-10 bar)
Temperature Range
  • 32° to 158° F (0° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD NPT (C) F F1 G H (min) H (max) J L L1 L2 Oz
7066 04 11 5/32" 1/8" .63" .39" .43" 1.44" 1.67" .69" .85" .59" .79" .79 Oz
7066 04 14 5/32" 1/4" .63" .39" .43" 1.44" 1.67" .69" .85" .59" .79" .79 Oz
7066 56 11 1/4" 1/8" .63" .39" .43" 1.44" 1.67" .69" .85" .59" .79" .79 Oz
7066 56 14 1/4" 1/4" .63" .39" .43" 1.44" 1.67" .69" .85" .59" .79" .97 Oz
7066 60 14 3/8" 1/4" .91" .67" .63" 1.71" 2.03" .98" 1.22" .71" 1.02" 2.15 Oz
7066 60 18 3/8" 3/8" .91" .67" .63" 1.71" 2.03" .98" 1.22" .71" 1.02" 2.22 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
